Key Features
- Fully compliant to BS5839-9:2021
- Designed and manufactured in the UK
- Integrated assist call
- Expandable from 2 to 8 lines
- Standalone with an option to network and monitor up to 512 lines
Overview

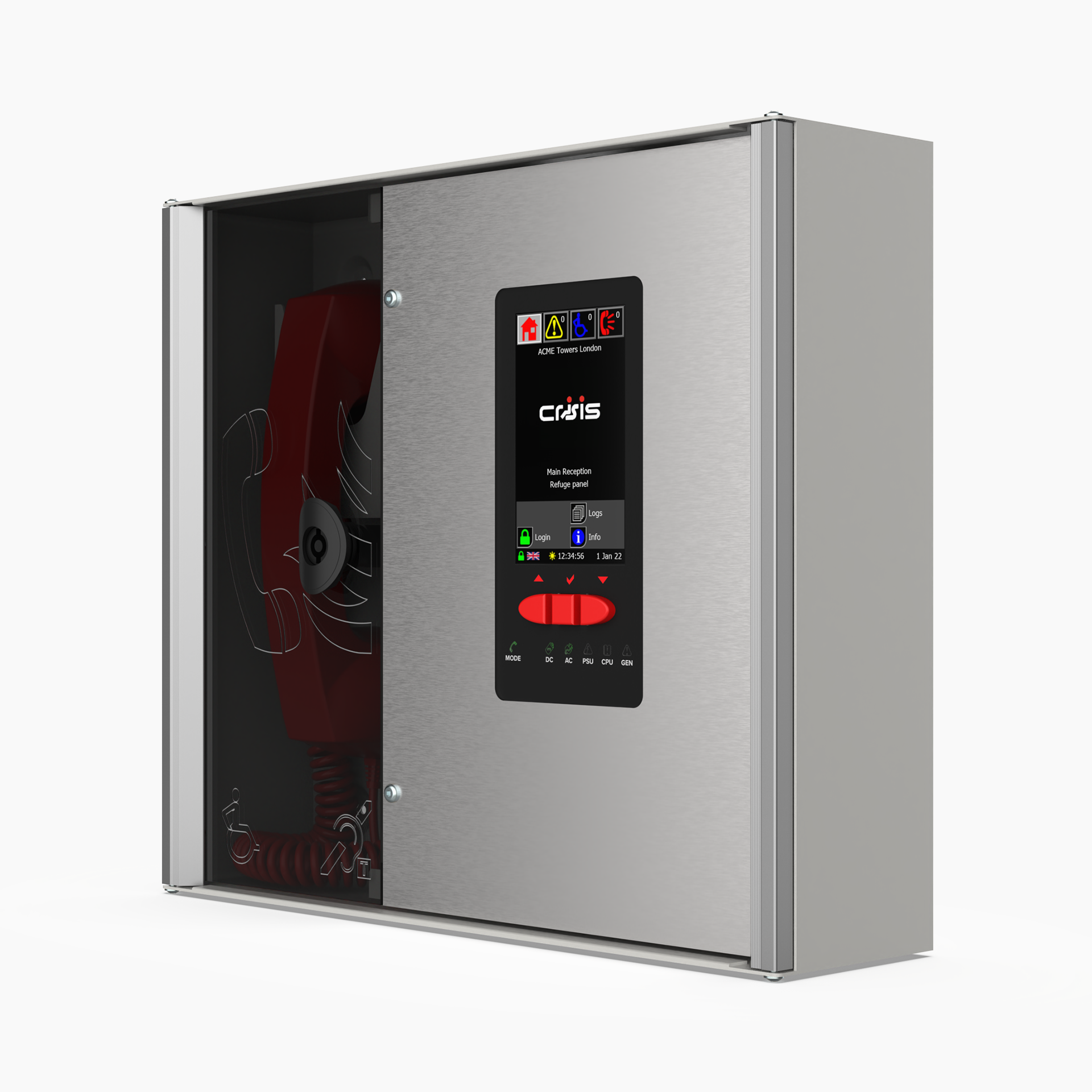

The Crisis Network Emergency Voice Communications System (EVCS) is designed to fully comply with BS5839 Part 9:2021 for use as a fire telephone system, disabled refuge call system or as a combined system when both fire telephones and disabled refuge points are required.
For Crisis network systems a Crisis Network Master Station must be used as the site-wide network master station. The system can then be expanded using a Crisis EVC Network Expander or Crisis Master Station in blocks of 8 lines up to a maximum system capacity of 512 lines.
The system can be configured using the touchscreen display. It has four buttons, allowing quick access to the main functions, and permanently displays the number of current calls, alarms and faults.
It can call individual outstations via a named directory list or by dialling the appropriate extension number for the desired outstation. It is also possible to call and pass control to other Crisis Master Stations.
Ideal Solution For Large Applications
Crisis EVC systems are wired using a ring and spur topology with outstations being wired on radial spurs from any master station or system expander panel. Crisis EVC Network Expanders and any Crisis EVC Network Master Stations or Crisis EVC Master Stations can also be wired in a ring network up to a maximum of 64.
Compatible Outstations
The Crisis EVC Network Master Station can support up to eight lines of outstation, including type A fixed phones, type B refuge hands free points, emergency assist call points or jack points in Far East and Middle East applications.
Turntable
Approvals
Tech Specs
| AC Input | 230V AC ± 10% 50/60Hz |
| Internal supply | 5V, 16V, 27V DC |
| Supply and battery | Monitored Open, Short, Fuses, High Impedance |
| Protection | Deep discharge, Short, Thermals |
| Battery type | 1 x 12V 7AH VRSLA |
| Mains fuse | 240V 1A HRC |
| Battery fuse | 750mA PTC |
| Max charge current | 400mA |
| Lines | 2 – 8 in 2 line blocks |
| Remote enable | Short to use |
| End of line | 10kΩ |
| Cable Type | Standard / Enhanced |
| Cores | 1× 2 core radial 1mm or 1.5mm |
| Distance | 500m from master station |
| Outputs | 2, Fault & In use |
| Fault Relay | 1× Volt free NC, Com 30V DC 1A |
| In Use Relay | 1× Volt free NO, Com 30V DC 1A |
| Navigation Buttons | 3 push button navigation keys |
| Statutory indicators | 3 x PSU status indicators1 x CPU fault indicator1 x general fault indicator1 x RGB mode indicator |
| Touchscreen | 4.7” RGB touchscreen |
| Network Cores | 2 x 2 core loops, 1mm or 1.5mm (2c Data, 2C Audio) |
| Network Distance | 500m max between panels |
| Weight | 4.5kg |
| Dimensions (W x H x D) | 350 x 300 x 95mm |
