Churches and cathedrals are places of worship, heritage and community use. They host regular services, weddings, funerals, concerts, exhibitions and public events. Many are historic buildings built from timber, stone and lead, with complex roof spaces, hidden voids and valuable interiors including artwork, organs and archives.
Fire safety is critical because a single incident can cause irreversible loss. These buildings often contain combustible materials, ageing electrical systems and large open volumes that allow smoke and heat to spread quickly. Occupancy can vary from a handful of people to hundreds, which makes early detection and safe evacuation essential.
Many churches and cathedrals are also protected structures. Repair after fire is slow, costly, and in some cases impossible. A fast, reliable fire detection system helps protect life, preserve irreplaceable heritage and support business continuity for worship, tourism and community activities.
Risks
Churches and cathedrals face a unique mix of fire risks due to their age, construction and daily use. Large open spaces, hidden voids and valuable contents mean that even a small ignition source can develop into a serious incident if not detected early.
- Electrical faults
- Old or overloaded wiring, temporary lighting for events and ageing distribution boards increase the risk of short circuits and overheating.
- Candles and open flames
- Candles are central to worship but remain one of the most common causes of church fires. Unattended flames, drafts and proximity to fabrics or wooden fittings all raise the risk.
- Heating systems
- Boilers, space heaters and underfloor heating can fail or overheat. Dust build-up and poor maintenance can also lead to ignition.
- Hot works and maintenance
- Roof repairs, welding, soldering and restoration work introduce sparks and high temperatures, often close to dry timber and historic materials.
- Arson and accidental ignition
- Public access means a higher risk of deliberate fire-setting and accidental ignition from matches, lighters or discarded smoking materials.
Challenges
Designing an effective fire detection system in a historic place of worship is complex. The building layout, materials and use all affect how quickly smoke can be detected and how reliable the system will be.
- Large open volumes and high ceilings
- Smoke can dilute and cool as it rises, which delays activation of standard point detectors. Detection needs to work over long distances and in very high roof spaces.
- Hidden voids and roof spaces
- Timber roofs, crypts, galleries and service voids can allow a fire to develop out of sight. Access is often limited, making detector placement and maintenance difficult.
- Environmental conditions
- Dust, incense, temperature changes and airflow from heating can cause false alarms or reduce detector sensitivity if the system is not designed correctly.
- Aesthetic and heritage restrictions
- Equipment must be discreet and sympathetic to listed interiors. Cabling routes and detector positions are often limited by conservation requirements.
- Variable occupancy and use
- From quiet daily prayer to full services and concerts, the fire detection system must perform reliably in both empty and crowded conditions, without nuisance alarms or reduced response time.
VESDA-E Aspirating Smoke Detection
VESDA-E is a high-sensitivity aspirating smoke detection system designed for early warning in large and complex buildings such as churches and cathedrals. It continuously draws air through a network of small pipes and analyses it for very low levels of smoke, allowing a fire to be detected at its earliest stage. Key features include multiple sensitivity levels, advanced filtering to reduce false alarms, and the ability to pinpoint the location of smoke within the pipe network. The system provides staged alarms, which support investigation before evacuation and help protect historic fabric and valuable contents.

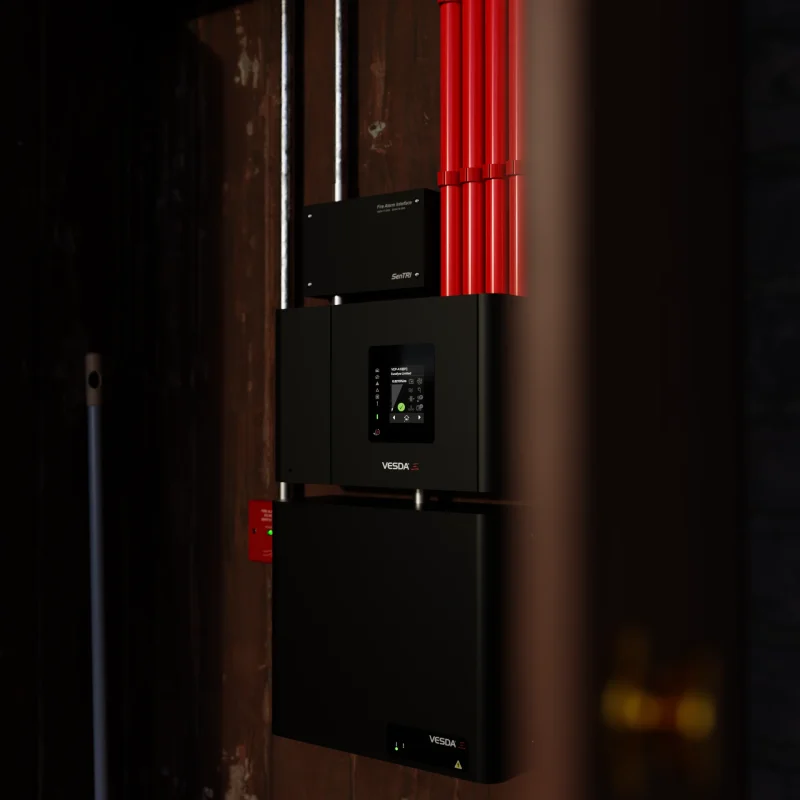

VESDA-E VEP
The VESDA-E VEP is a compact aspirating smoke detection panel designed for areas where space is limited but very early warning is required. It supports a single pipe network with up to four sampling sectors, allowing precise identification of the area where smoke is detected. The panel offers high sensitivity, multiple alarm thresholds and advanced filtering to minimise false alarms from dust or incense. Its Ethernet connectivity enables remote monitoring and integration with fire alarm and building management systems, making it suitable for discreet installation within church offices, vestries or control rooms.

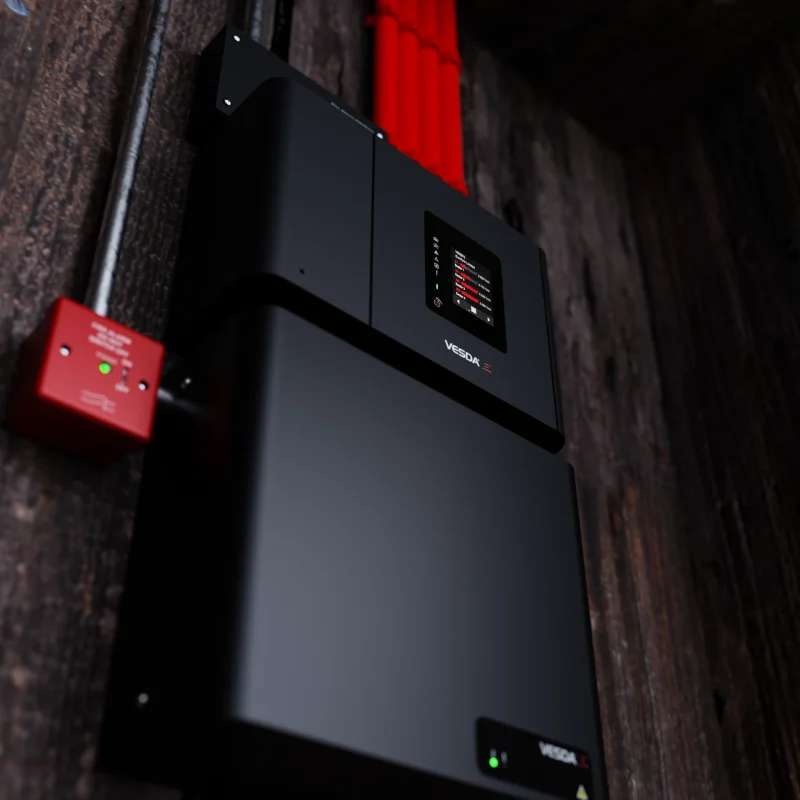

VESDA-E VES
The VESDA-E VES is a high-performance aspirating smoke detection panel designed for large and complex spaces such as naves, transepts and roof voids. It supports multiple pipe networks and a high number of sampling points, providing very early warning across wide areas with high ceilings. Key features include adjustable sensitivity, advanced smoke discrimination and powerful airflow monitoring to ensure pipe integrity. The panel offers multiple alarm levels for early investigation and confirmed fire conditions. Network connectivity allows integration with the main fire alarm system and remote monitoring, supporting reliable protection of historic buildings and valuable contents.
Approvals
Design Considerations
Control Panel Placement
The main control panel should be installed in a location that is easy for staff and the fire service to access, while remaining secure and discreet. In a church, this is usually within the vestry, office or an entrance lobby close to the main door. The panel must be clearly visible, well-lit and positioned at a comfortable operating height. It should not be placed in areas that are locked during services or events, or in locations exposed to damp, dust or temperature extremes. Clear access ensures rapid investigation, system control and effective coordination during an incident.

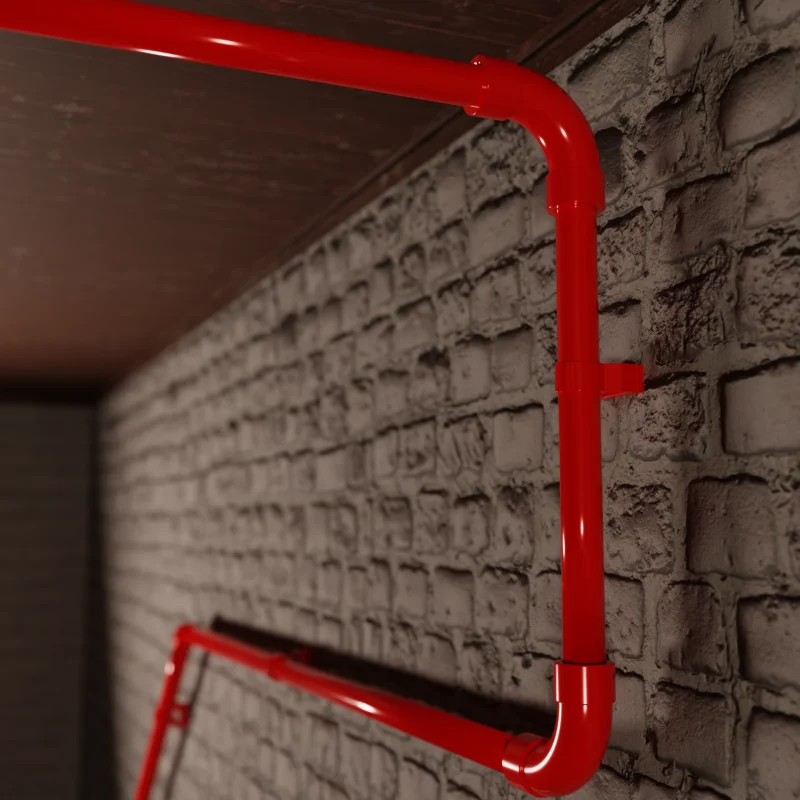

Pipe & Fittings Placement

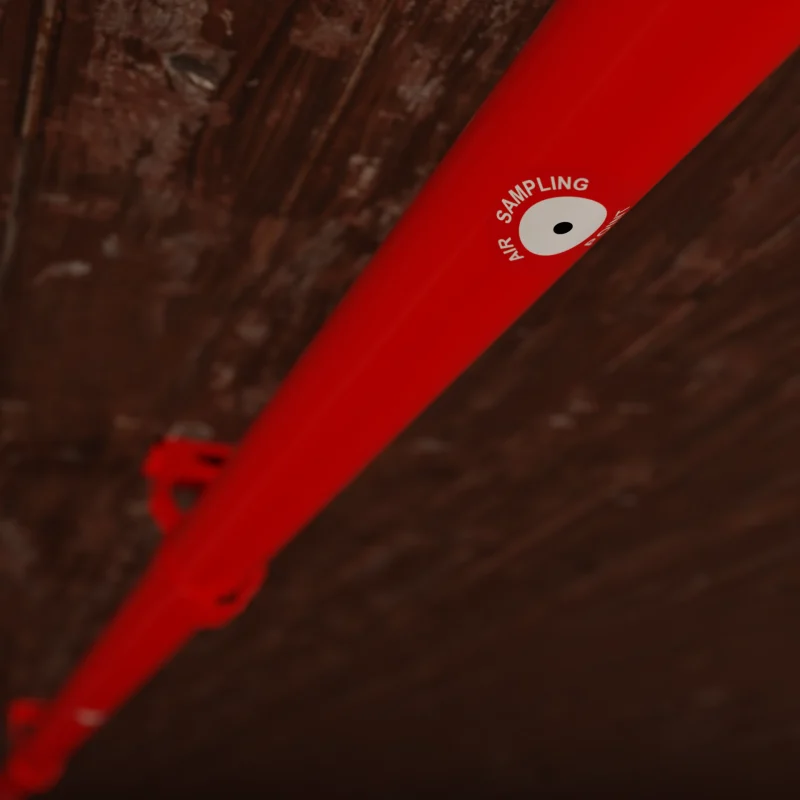

ASD pipe and fittings should be routed to provide even coverage of the protected space while remaining as unobtrusive as possible. In churches and cathedrals, pipes are typically installed along roof trusses, in galleries and within voids, with sampling holes positioned where smoke is most likely to accumulate, such as at the apex of the roof or above timber structures. The layout must account for airflow patterns and ceiling height to ensure early smoke capture. All fittings should be securely fixed, clearly labelled and accessible for inspection, while respecting the building fabric and conservation requirements.
Low Level Maintenance
Low level maintenance means carrying out routine testing and inspection of an aspirating smoke detection system without the need for access equipment or working at height. In churches and cathedrals, this can be achieved by using capillary pipes that run from high level sampling points down to accessible locations at ground level. Test points can then be installed on these pipes so that smoke or test aerosol can be introduced safely during maintenance. This allows engineers to confirm airflow, sensitivity and alarm response while reducing disruption, risk and the need for specialist access to roof spaces.
Handpicked Solutions for Churches and Cathedrals
Aspirating Smoke Detectors
VESDA VEP detectors use advanced Flair™ technology to give a very early warning of a potential fire while being smart enough to prevent false alarms. For ongoing accuracy and reliability, they are built with absolute calibration, protected internal optics, and an intelligent dust filter.
The VESDA-E VES Aspirating Smoke Detector provides very early warning fire detection with built-in relays for zoned control. It continuously samples air through a pipe network and uses laser-based sensing for precise smoke analysis. With four configurable alarm sectors, it offers fast, targeted protection for critical environments like data centres.
Power Supplies and Batteries
The Xtralis VPS-220-STX5 is an EN54-4 certified power supply specifically designed for VESDA-E detectors. It delivers a continuous 0.5A 24V DC supply and charges standby batteries up to 14Ah, providing a fully integrated and reliable power source for the entire system.
The Xtralis VPS-250-STX5 is a high-capacity power supply unit, fully certified to EN54-4 and engineered for larger or more demanding VESDA-E systems. It provides a robust, continuous 3A 24V DC output and features an integrated charger for standby batteries up to 24Ah, guaranteeing reliable primary power and extended standby autonomy.
Aspirating Pipe & Fittings
This 25mm red ABS pipe is purpose-built for use in aspirating smoke detection installations.
Use these sockets to connect two lengths of pipe, securing the join with an application of ABS solvent cement.
The 90° tee fitting is used to create a perpendicular branch from a main pipe run.
The 45° elbow fitting is used to create a gradual change in direction, enabling pipework to navigate around obstacles.
Flexible connectors are used in place of standard elbows for awkward angles or tight spaces. Strengthened with an internal steel wire for durability, they can be mounted in any direction without restricting airflow.
This 90° sweeping bend fitting alters the direction of a pipe run while preserving system integrity by minimising air loss.
This pipe clip securely holds air-sampling pipe with a quick-clamp action for simple installation, while optional fixing nuts and side rod connectors provide greater flexibility for more demanding mounting scenarios.
Sampling points and accessories

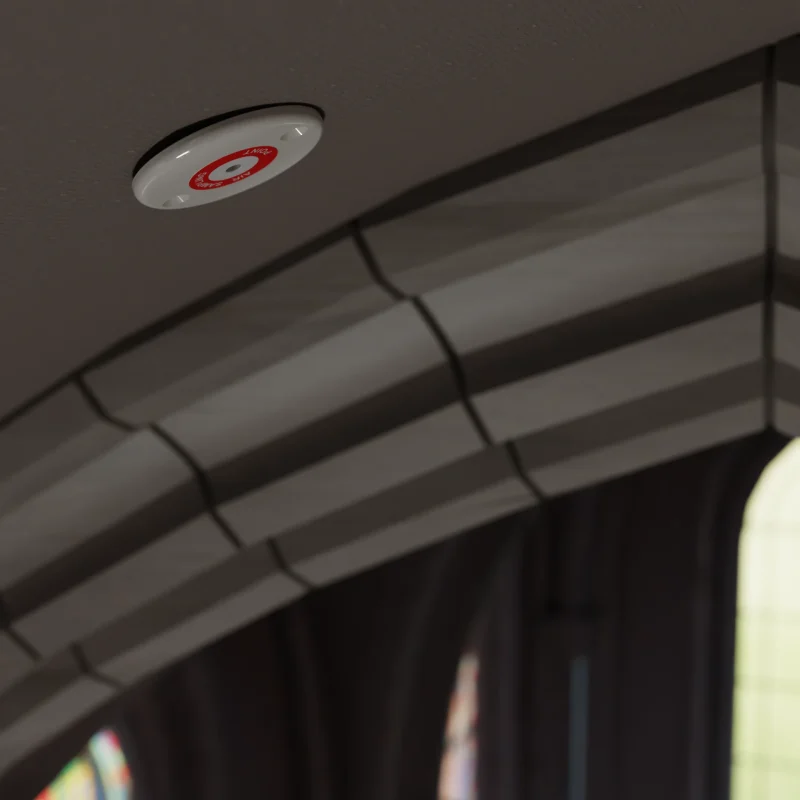

The Flush Mount Sampling Point is an advanced alternative to standard conical points for Xtralis ASD systems, offering significant improvements in both functionality and appearance.
This flush sampling point connects to a 10mm capillary pipe to provide a discreet finish. For versatile mounting, it can be fastened to a ceiling tile with the included nut or screwed directly into a solid ceiling.
The Red 25mm Flush Capillary Kit provides discreet, low-level sampling points for ASD systems, ensuring accurate airflow and easy maintenance.
These self-adhesive, red air sampling labels are used to clearly mark and identify sampling points, and are supplied on convenient rolls of 100.
Why Choose Eurofyre?
- Honeywell Fire Platinum Partner
- As a Honeywell Fire Platinum Partner, Eurofyre is recognised for its capacity to deliver tailored solutions for specific regions and industries. This includes comprehensive implementation, advanced customer support, and preferential pricing for Honeywell products.
- Complete System Supplier
- Eurofyre is a complete system supplier with a long-standing partnership as a major Xtralis technical wholesaler, established in 2007. This long-standing expertise allows us to provide specialist advice and supply all aspects of fire detection, from aspirating smoke and linear heat systems to conventional and addressable control panels.
- Pipework Design
- Our services also include professional design support for aspirating pipe networks, helping clients achieve maximum system performance and a quality installation.
- Demonstration and Training
- Eurofyre delivers expert training and system demonstrations from our sophisticated facility, covering a wide range of products including VESDA VEP, VLF, amongst other aspirating smoke detection systems.
- After-Sales Support
- At Eurofyre, we are dedicated to delivering superior after-sales support. You can rely on our on-site and telephone assistance to keep your system fully functional and performing flawlessly.
For more information on VESDA aspirating smoke detection or to explore our full range of products, please contact us by phone on +44 (0) 1329 835 024, by email at [email protected], or via the enquiry form on our contact page.
