Key Features
- 32 tones settings
- High sound output capability
- Bi-directional wireless communication
- Waterproof certified to IPX5
- 3rd party approval to EN54-3 (Type B)
Overview

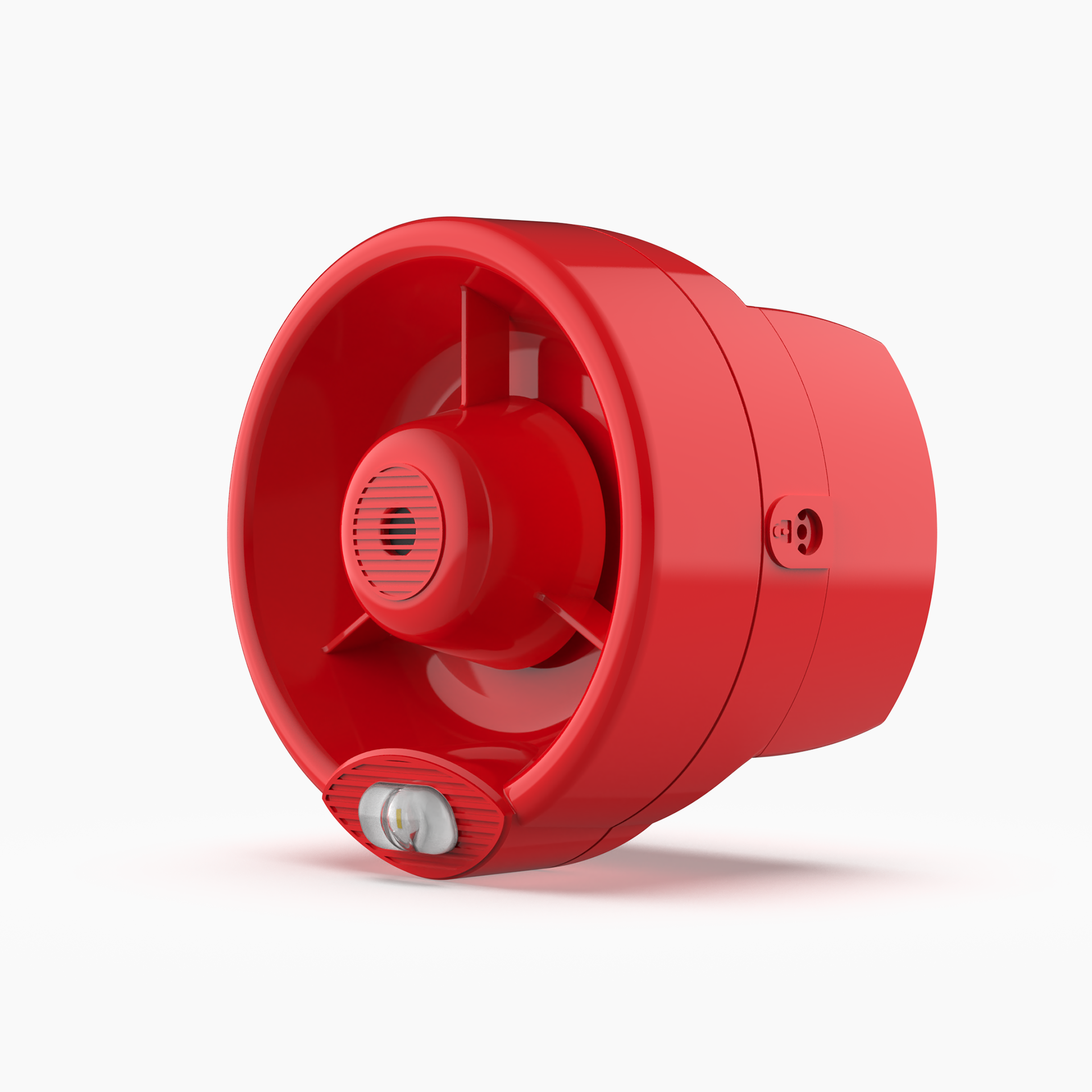

The Wi-Fyre Xenos Wall Sounder VAD is an EN54-3 (Type B) and EN 54-23 complaint visual/alarm device with 3-levels of volume adjustment, high output LED beacon and 32 recognised tones which can be set via the control equipment or locally at the sounder.
When connected to a wireless system on a compatible loop, the Wi-Fyre Xenos Wireless Wall Sounder VAD is fully controlled by the panel and benefits from a complete range of intelligent control, testing and monitoring functionality; including sounder synchronisation.
Adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.
Wireless Range
The point-to-point transmission range for Xenos is over 1km in open air and our antenna technology is tuned for performance across frequencies and environments. Combined with up to 8 expansion hops, a Wi-Fyre Xenos system can cover well over 8km.
Battery Life
Wi-Fyre Xenos Wireless Wall Sounders use standard low-cost lithium battery technology with a battery life of up to 5 years.
Turntable
Approvals
Tech Specs
| Operating Frequency Range | 868 – 870 MHz |
| Max radiated power | 14dBm (25mW) |
| Acoustic Frequency range | 400-2900 Hz |
| Maximum acoustic Output | 100 dB(A) ± 3 |
| IP rating | X5 |
| Primary & Secondary batteries | CR123A (3 V & 1.2 Ah) |
| Max humidity (non condensing) | 95% RH |
| Operating Temperature | -10°C to +55°C |
| Weight | 350g |
| Dimensions (W x D x H) | 132 x 126 x 90mm |
Downloads
- Wi-Fyre Xenos Wireless Wall Sounder VAD Datasheet
- Wi-Fyre Xenos Wireless Wall Sounder VAD Certificate of Constancy of Performance
- Wi-Fyre Xenos Wireless Wall Sounder VAD Declaration of Conformity
- Wi-Fyre Xenos Wireless Red Wall Sounder VAD UK Declaration of Performance
- Wi-Fyre Xenos Wireless Red Wall Sounder VAD EU Declaration of Performance
- Wi-Fyre Xenos Wireless White Wall Sounder VAD UK Declaration of Performance
- Wi-Fyre Xenos Wireless White Wall Sounder VAD EU Declaration of Performance
Buy
Eurofyre has been supplying wireless fire detection systems since 2008. Wi-Fyre Xenos is the next generation in hybrid wireless fire detection technology. We offer expert advice and supply all aspects of wireless fire detection systems including wireless survey assistance, demonstration/training and excellent after-sale support.
Learn more about becoming an Authorised Xenos Distribution Partner HERE.
Contact us for trade discount and credit opportunities. In order to make Conventional Wall Sounder VAD wireless, the Wi-Fyre Xenos Wireless Wall Sounder Module must be purchased.
