Key Features
- 32 tones settings
- High sound output capability
- Bi-directional wireless communication
- Waterproof certified to IPX5
- 3rd party approval to EN54-3 (Type B)
Overview

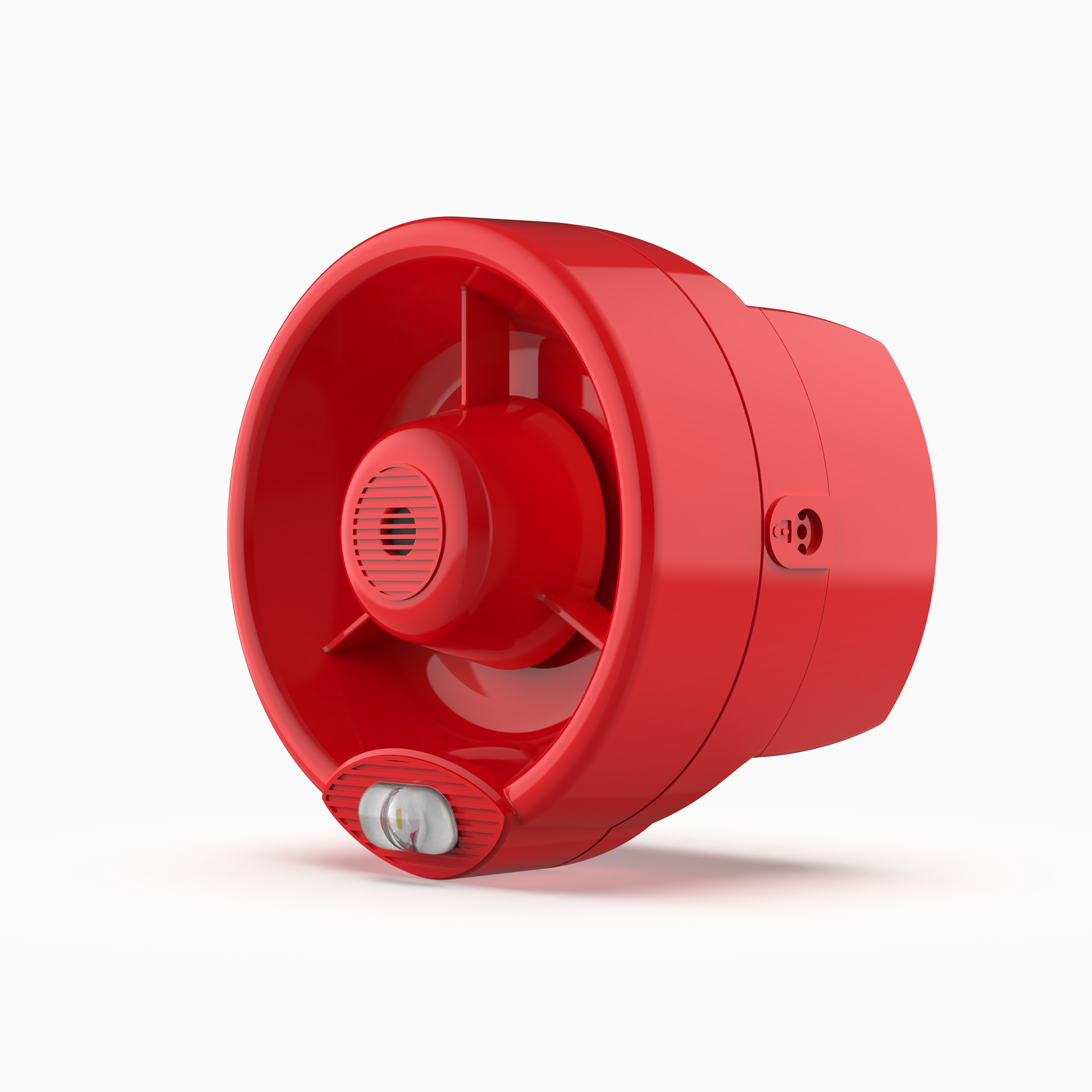

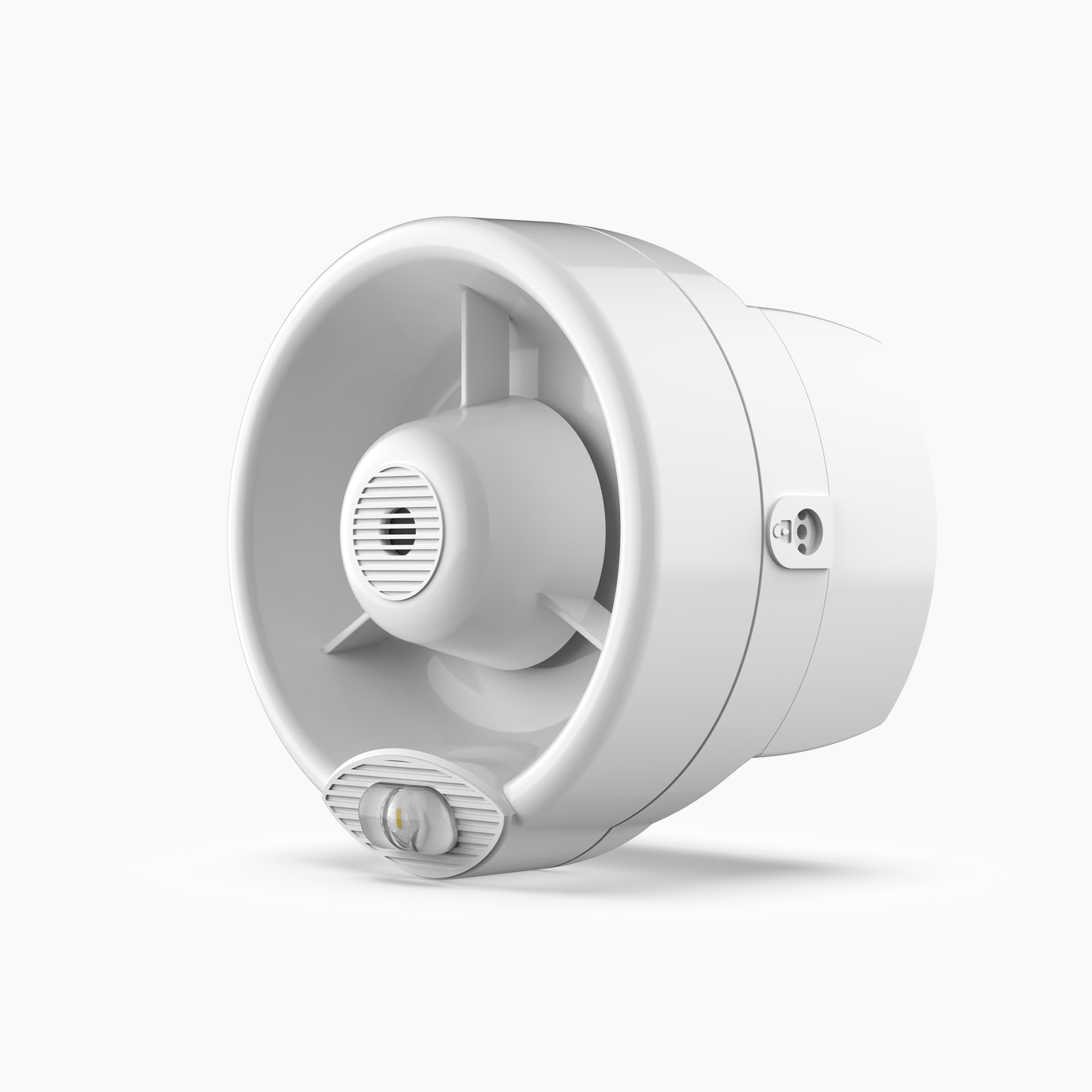

The Wi-Fyre Xenos Wall Sounder VAD is an EN54-3 (Type B) and EN 54-23 complaint visual/alarm device with 3-levels of volume adjustment, high output LED beacon and 32 recognised tones which can be set via the control equipment or locally at the sounder.
When connected to a wireless system on a compatible loop, the Wi-Fyre Xenos Wireless Wall Sounder VAD is fully controlled by the panel and benefits from a complete range of intelligent control, testing and monitoring functionality; including sounder synchronisation.
Adaptive radio signal processing algorithms ensure the highest levels of life safety and reliability.
Wireless Range
The point-to-point transmission range for Xenos is over 1km in open air and our antenna technology is tuned for performance across frequencies and environments. Combined with up to 8 expansion hops, a Wi-Fyre Xenos system can cover well over 8km.
Battery Life
Wi-Fyre Xenos Wireless Wall Sounders use standard low-cost lithium battery technology with a battery life of up to 5 years.
Turntable
Approvals
Tech Specs
| Operating Frequency Range | 868 – 870 MHz |
| Max radiated power | 14dBm (25mW) |
| Acoustic Frequency range | 400-2900 Hz |
| Maximum acoustic Output | 100 dB(A) ± 3 |
| IP rating | X5 |
| Primary & Secondary batteries | CR123A (3 V & 1.2 Ah) |
| Max humidity (non condensing) | 95% RH |
| Operating Temperature | -10°C to +55°C |
| Weight | 350g |
| Dimensions (W x D x H) | 132 x 126 x 90mm |
Downloads
- Wi-Fyre Xenos Wireless Wall Sounder VAD Datasheet
- Wi-Fyre Xenos Wireless Wall Sounder VAD Certificate of Constancy of Performance
- Wi-Fyre Xenos Wireless Wall Sounder VAD Declaration of Conformity
- Wi-Fyre Xenos Wireless Red Wall Sounder VAD UK Declaration of Performance
- Wi-Fyre Xenos Wireless Red Wall Sounder VAD EU Declaration of Performance
- Wi-Fyre Xenos Wireless White Wall Sounder VAD UK Declaration of Performance
- Wi-Fyre Xenos Wireless White Wall Sounder VAD EU Declaration of Performance
Buy
Eurofyre has been supplying wireless fire detection systems since 2008. Wi-Fyre Xenos is the next generation in hybrid wireless fire detection technology. We offer expert advice and supply all aspects of wireless fire detection systems including wireless survey assistance, demonstration/training and excellent after-sale support.
Contact us for trade discount and credit opportunities. In order to make Conventional Wall Sounder VAD wireless, the Wi-Fyre Xenos Wireless Wall Sounder Module must be purchased.
