- Protect areas up to 1600m2 (16000 sq. ft)
- EN54-20 Class C compliant
- Absolute smoke detection
- Clean air barrier for optics protection
- Single pipe inlet

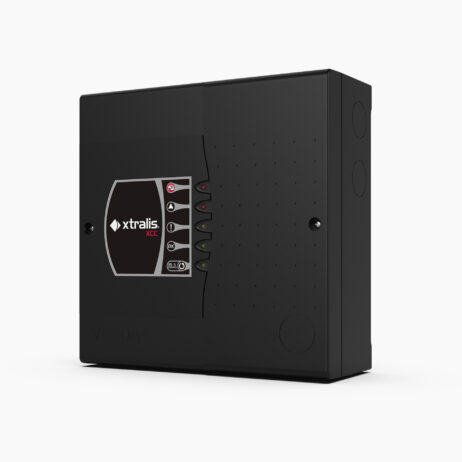

The Xtralis Class C (XCC) detector is specifically designed to provide a convenient solution for meeting the requirements for a normal sensitivity EN54-20 Class C aspirating smoke detector (ASD).
The XCC offers cost effective normal sensitivity aspirating detection making it ideal where an ASD is needed to overcome the limitations of point detectors. The XCC provides support for flexible ASD pipe network designs to meet the needs of a wide range of environments. When smoke is difficult to detect due to high ceilings and other factors, XCC’s active sampling provides reliable protection. Maintenance access difficulties can be avoided by positioning the detector at ground level or outside the protected area. Discreet capillary air sampling provides unobtrusive detection where ‘invisible’ protection is required. In dirty environments, the XCC helps to reduce nuisance alarms through discrimination between dirt and smoke. In addition, its clean air barrier protects the detection chamber optics for reduced maintenance and longer detector life.
The XCC detector can cover up to 1600m2 and supports up to 18 holes. Each hole is designed to meet EN54-20 Class C requirements and can be used in place of normal point detection with total confidence. The XCC provides two levels of alarm for reliable indication of fire to assure life safety and/or asset protection for your business, using a simple interface to fire alarm control panels and monitoring systems via relays.
- Two alarm thresholds: Pre-Alarm and Fire-Alarm
- Configuration and maintenance via VSC software
- Accurate airflow monitoring
- Simple mounting design
- Three relays (Fire-Alarm, Pre-Alarm, Fault)
- Relays configurable as latching or non-latching
The Xtralis XCC is fully approved by VdS for safe use and installation in any European Union country and bears the CE mark to show that it complies with all the applicable Directives including the CPR, EMC and the Low Voltage Directive (LVD).
EN54-20:2006 + AC:2008 – Fire detection and fire alarm systems – Control and indicating equipment.
|Supply Voltage||18 to 30Vdc|
|Power Consumption||5.7W quiescent, 6.2W in alarm|
|Current Consumption||235mA quiescent, 255mA in alarm|
|Dimensions (W x H x D)||225mm x 22 mm x 85mm (8 7/8” x 8 7/8”x 3 3/8”)|
|Weight||1.9kg (4.2 lb)|
|Operating Conditions||Tested to -10 °C to 55 °C (14 °F to 131 °F)|
Recommended Detector Ambient: -10 °C to 39 °C (14 °F to 103 °F)
Sampled Air: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity: 10% to 95% RH, non-condensing
Class C (18 holes / Threshold I)
|Sampling Network||Maximum area of Coverage 1600m2 (16000 sq.ft)|
Maximum pipe lengths: 1 x 110m (18 holes), 2 x 80m (18 holes)
|Pipe||Internal Diameter 21mm|
External Diameter 25mm (1”)
|Relays||3 Relays rated 2A @ 30Vdc|
Fault (Maintenance & Isolate) (NC/NO).
Configurable as latching or non-latching
|Cable Access||4 x 25mm (1”) cable entries|
|Cable Termination||Screw Terminal blocks 0.2 to 2.5mm2 (30 to 12 AWG)|
|Sensitivity||4 threshold settings (I-IV) for Class C sensitivity to EN54-20 on pre-engineered pipe network designs|
