Key Features

  • Unique ‘plug and play’ installation concept
  • Total ‘flex-ability’ in the choice of operating element
  • Anti-tamper facility
  • Enhanced aesthetics
  • Backward compatibility

Overview

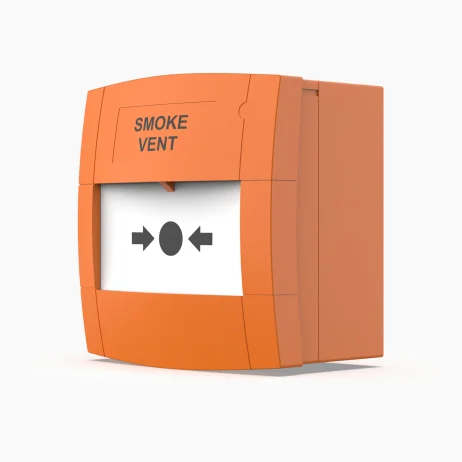

The KAC AOV Manual Call Point is designed for use with a range of smoke vent panels. When the call point is activated, a signal is sent to the smoke vent control panel to automatic smoke vents.

KAC AOV Manual Call Points are easy to install, flexible and fully comply with the latest standards.

The KAC AOV Manual Call Point introduces a distinctive ‘plug and play’ concept explicitly aimed at minimising installation time. This innovative approach is tailored to streamline the installation process, thereby contributing to overall cost reduction without compromising the quality or functionality of the system.

KAC AOV Manual Call Points make use of a dedicated terminal block, specifically designed to accommodate the initial installation cabling. This terminal block conveniently connects to the rear of the MCP, eliminating the need for re-termination and saving valuable time during the installation process.

The MCP range can function as either a break glass or resettable unit. This versatility is achieved by simply changing from one element to another, without the requirement of ordering additional parts or alternative products

Removal of the product lid will result in the call point operating and the system going into alarm.

Turntable

Approvals

Tech Specs

Maximum Voltage30Vdc
Current Rating (switch only)2 Amps
Humidity93± 3% non-condensing
Operating Temperature-10°C to +55°C
Storage Temperature  -10°C to +55°C
MaterialPC/ABS
Ingress Protection (IP) RatingIP24D
Weight130g
Dimensions (W x H x D)89mm x 93mm x 27.5mm
Cable Termination0.5-2.5mm2

Downloads

Buy

Contact us to receive competitive trade discounts or apply online for a credit account.

KAC Manual Call Point, Orange

12-045
POA
