Key Features

  • Completely wireless operation
  • Silent test facility
  • Wirelessly interconnected with up to 40 devices
  • Independently tested to ETSI-300-220-1
  • CE RoHs and EMC compliant

Overview

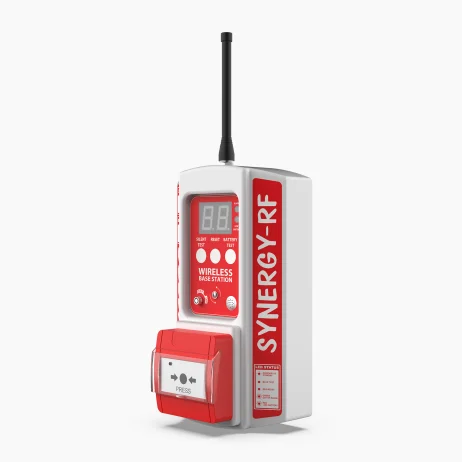

The Evacuator Synergy Base Station is an essential part of an Evacuator temporary wireless fire detection system. The base station acts as a system control panel and features an onboard display to indicate when the system is in test or alarm state.

The Evacuator Synergy RF base station can communicate with up to 40 call points, sounders, strobes and Synergy Automatic Detection devices without the need for any cabling. Each connected device is assigned a numerical address which allows the triggered device to be easily identified. The Evacuator Synergy RF Base Station also monitors all its linked devices in case of low battery.

Manufactured in the UK, this base station offers completely wireless operation and runs on 9v batteries (a mains option is available). It features a silent test facility as well as an 85dB buzzer and is decorated with scratch-resistant UV decals. Evacuator Synergy Base Stations are housed in a water- and dust-proof, IP55 rated enclosure making them suitable for most internal or external applications.

This unit is simple to install and offers plug-and-play integration. It also benefits from low maintenance costs.

Approvals

Evacuator Synergy systems operate on a category one radio module meaning it is safe for use in human life inherent systems and are tested to the Radio Equipment Directive (RED). These base stations are also compliant with the Restriction of Hazardous Substances (RoHS) directive, Electromagnetic Compatibility (EMC) directive and are independently tested to ETSI-300-220-1, the European standard for Short Range Devices (SRD) operating in the frequency range 25 MHz to 1,000 MHz. They bear the CE mark, approving them for sale in the EU.

Tech Specs

Weight1.2 kg
Dimensions (W x H x D)165mm x 285mm x 110mm
Power Source9Vdc
IP RatingIP55
Sound Output (dB)85db

Downloads

Buy

Evacuator Synergy Base Station

Evacuator Synergy Base Station

FMCEVASYNBS
£324.99
