- Dual zones, can monitor 2 digital cables
- Interlock/coincidence detection
- Displays distances to the alarm point in feet or meters
- RS-485 communication
- UL approved

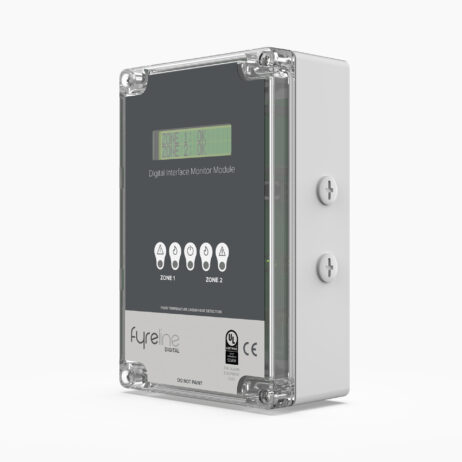

The Digital Interface Monitor Module (DiMM) is a dual zone module for monitoring up to two zones of Digital Linear Heat Detection (DLHD) Cable.
If an overheat or fire situation triggers either zone of the Digital LHD cable, the unit automatically calculates and displays the distance along the cable, in feet and metres, to the alarm point. The two zones can operate independently of each other, or in interlock mode and a separate alarm and normally conducting fault output are provided for each zone.
The unit is intended to be installed between the FyreLine Digital Linear Heat Detection cable and a conventional or addressable fire alarm control panel. It has power, fault and alarm lights, as well as volt free outputs for fault and alarm, corresponding to each zone. It may also be connected to an industrial process control system using the two wire RS-485 Modbus RTU output.
The FyreLine Digital Interface Monitor Module is fully approved by the Underwriters Laboratories (UL) and bears the CE mark to show that they comply with all the applicable Directives including the CPR, EMC and the Low Voltage Directive (LVD).
- UL 864 10th Edition
Fire alarm control panels and accessories.
Typical Wiring Diagram
The Digital Interface Monitor Module (DiMM) can be used to provide the location of the point along the cable at which an alarm was triggered, giving an accurate a measurement in metres and feet.
Leader cable can be used between the DiMM and the control panel or addressable switch/zone monitor and between the DiMM and the heat sensing cable. As always a junction box must be used to maintain a secure and waterproof electrical connection.
When using a DiMM it is essential to map the system to associate distances along the detection cable to locations within the building to help determine the area where an alarm has been triggered easily.
|Dimensions (W x H x D)||120mm x 180mm x 60.5mm (4.72” x 7.08” x 2.38”)|
|IP Rating||NEMA 4, 4X (IP65)|
|Finish||Light grey with clear lid|
|Display||2 lines, 16 character back-lit display showing zone status|
|Approvals||UL 864 10th Edition|
|Power Requirements||All circuits power limited if powered from a power limited supply|
|Normal Operation (Standby)||<12mA|
|Operating Temperature Range||-20ºC to +50ºC (-4ºF to +122ºF)|
|Supervised Circuits||Power, Input Zone 1 & Input Zone 2|
|Inputs||Up to two zones of Fyreline Digital LHD Cable 3000m|
|Max Zone Length||3000m (10,000ft)|
|Min Zone Length||1m (3,2ft)|
|End of Line Resistor||1kohm (included)|
|Short Circuit Current||0.5mA|
|Ground Fault Impedance||0 ohms|
|Communications||Two wire RS-485 Modbus RTU (field wiring limited to same room to comply with UL listing)|
|Sounder||2.4kHz 92Db @ 10cm Buzzer|
|Alarm||2x Form C volt-free relay contacts (resistive, common)|
Max V: 30Vac or 42.4Vdc
Max Current: 2A
Max Switching Power: 60W, 62.5VA
|Fault||2x Optoisolated photo-transistor output (resistive, common)|
Max V: 35Vdc
Max Current: 80mA
Max Power Dissipation: 150mW
