Key Features
- Installer friendly Auto-learn, Loop Detection and Onboard Scope facilities
- Integral P-Bus for system expansion via available option cards
- Fully programmable via onboard keypad or PC configuration tools
- Approved to BS EN54 part 2, 4 and 13
- Fully compatible with Wi-Fyre Xenos
Overview

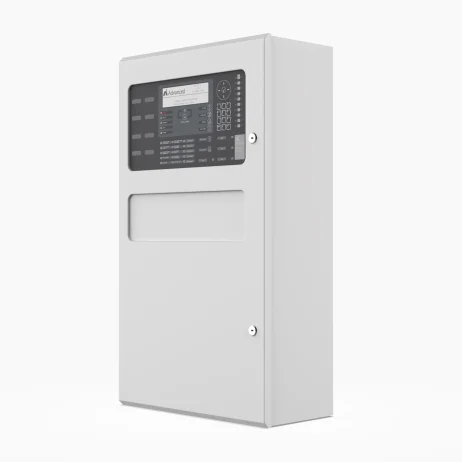

The Advanced MxPro 5 2-8 Loop Addressable Fire Alarm Panel is fully expandable from 2 to 8 loops and comes with 8 onboard sounder circuits, 20 programmable zonal LEDs with slide-in labels and 25 system LEDs for information purposes.
These addressable fire alarm panels feature the latest dual flash-based microprocessor technology and a high-resolution, high-contrast graphic display. A tactile keypad provides simple select and click programming for engineer configuration and end-user operation.
Powerful cause and effect programming, paired with dynamic zoning and enhanced Trace Diagnostics make the Advanced MxPro 5 2-8 Loop Addressable Fire Alarm Panel suitable for a wide range of small to large multi-area systems.
These fire alarm control panels can be programmed on-site using the onboard keypad or PC-Net configuration software. An extensive suite of Windows-based software provides a variety of programs to deliver configuration, service and virtual panel tools.
Adding a network card to the Advanced MxPro 5 2-8 Loop Addressable Fire Alarm Panel allows it to communicate with any other MxPro 5 / MxPro 4 fire panel, remote terminal, or network peripherals, such as ipGatewayTM or BMS/graphical interface. The network operates as a true peer-to-peer system and can be configured in a fault tolerant loop or radial format.
Providing Loop Power & Full Addressability
The Advanced MxPro 5 2-8 Loop Addressable Fire Alarm Panels have the capability to supply power to a maximum of 6 Wi-Fyre Xenos Translators per loop.
Turntable
Approvals
Tech Specs
| Base Technology | Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets |
| Display | White backlit 240 x 64 graphical LCD |
| LED Indicators | 22 red (1 x Fire, 1 x More Alarms, 20 x Zonal Programmable), 1 green (Power), 13 amber and 7 bi-colour (Fault & System) |
| Controls | Alpha numeric keypad permitting Navigation, Reset, Mute, Silence, Resound, Evacuate and 4 x Programmable Push Buttons |
| Protocols | Apollo (Xp95 / Discovery), Argus Vega, Hochiki ESP |
| Number of Fire Zones | 2000 when networked (400 max across 8 loops) |
| Number of Loops | Dedicated 2-8 loop control panel |
| Devices per loop | Protocol dependent |
| Loop Current | 500mA per loop |
| On-Board Sounder Circuits | 8 x 1 Amp programmable |
| On-Board Relays | 4 x 1 Amp 30v AC/DC programmable (10mA, 5v min) – expandable to 8 using 2 x Mxp-507 |
| Auxiliary Supply | 2 x 24v 500mA |
| Programmable Input | 2 x On-board Programmable Input |
| Programmable Key Switch Inputs | 16 volt free inputs |
| Total Available Output Current | 2 x 5A maximum available for loop current + sounder outputs + auxiliary supply |
| Mains Supply | 200 – 240v 47-63 Hz AC (+10%, -15% tolerance) 1.4A max |
| Charger Current | 2 x 2A temperature compensated |
| Serial ports | 2 x on-board RS232 connection for PC, modem, IP or portable printer |
| USB Interface | 2 x USB B type connection for PC communication |
| Programming | On-board keypad or PC running Windows tools |
| Event Log | 2 x 5000 Event & Diagnostic + 500 Fire |
| Networking | Optional plug-in network card (MXP-503 – standard, or MXP-509 – fault-tolerant) |
| Enclosure / Colour | Steel IP30 / RAL7035 |
| Metalwork Options | Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount |
| Dimensions (H x W x D) | Standard: 750 x 450 x 190mm |
| Cable Entry | Standard: 30 x top, 6 x rear, 3 x bottom plus 2 x double knockout rear |
| Battery Capacity (internal) | Standard: Min: 2 x 24v 4Ah Max: 2 x 24v 18Ah |
