Key Features
- Weatherproof design with IP66/67 ingress protection
- Robust UV-stable GRP enclosure for corrosion resistance
- Single or double pole changeover switch options available
- Optional LED indication for visual status confirmation
- SIL2 compliant in accordance with IEC 61508
Overview

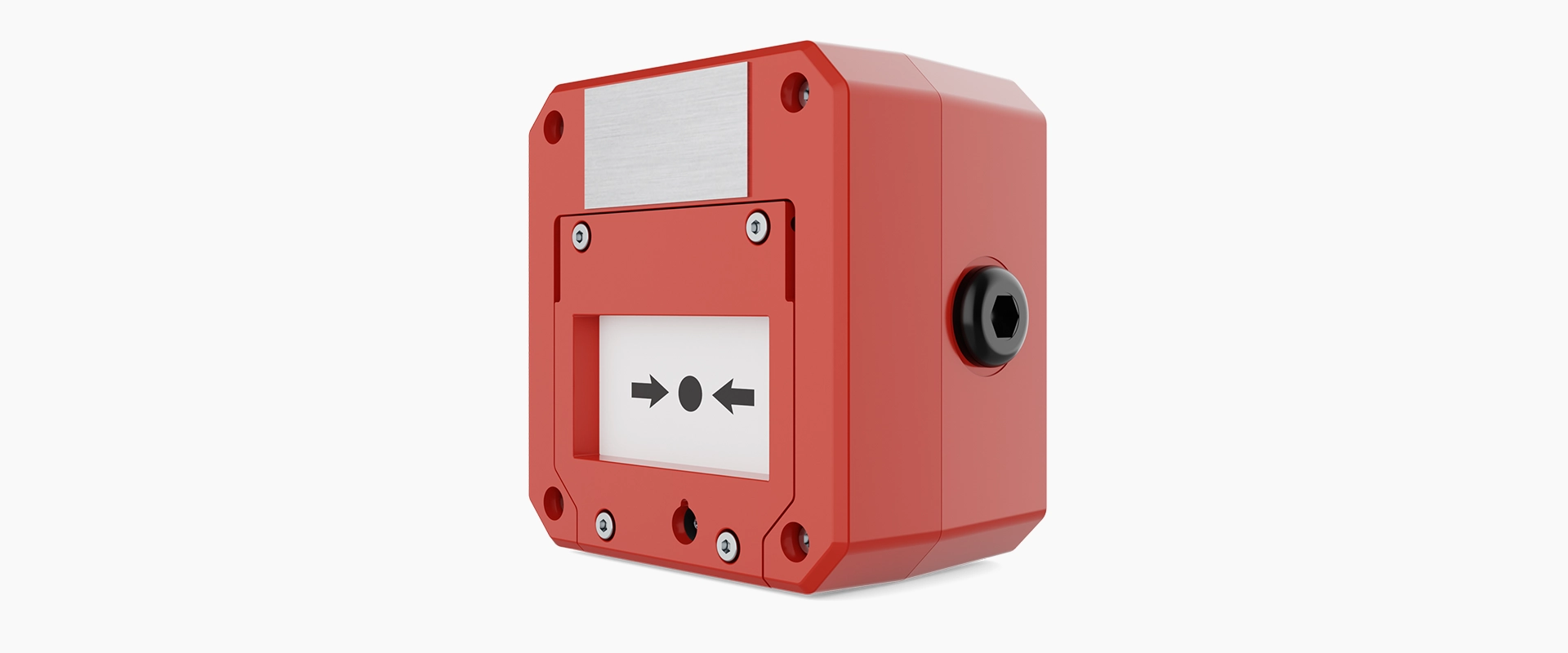

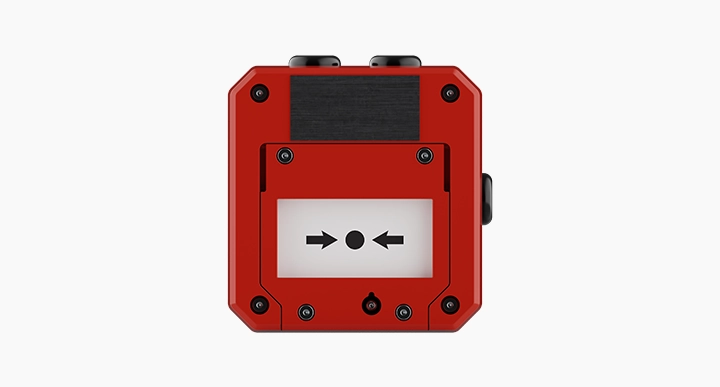

The E2S WP6-BG Conventional Weatherproof Manual Call Point is a robust break glass activation device designed for use in demanding indoor and outdoor environments. Built with a lightweight Glass Reinforced Polyester (GRP) enclosure, it provides a durable and corrosion-free solution suitable for industrial facilities, commercial buildings and harsh onshore or offshore applications. The UV-stable housing ensures long-term performance even when exposed to challenging environmental conditions.

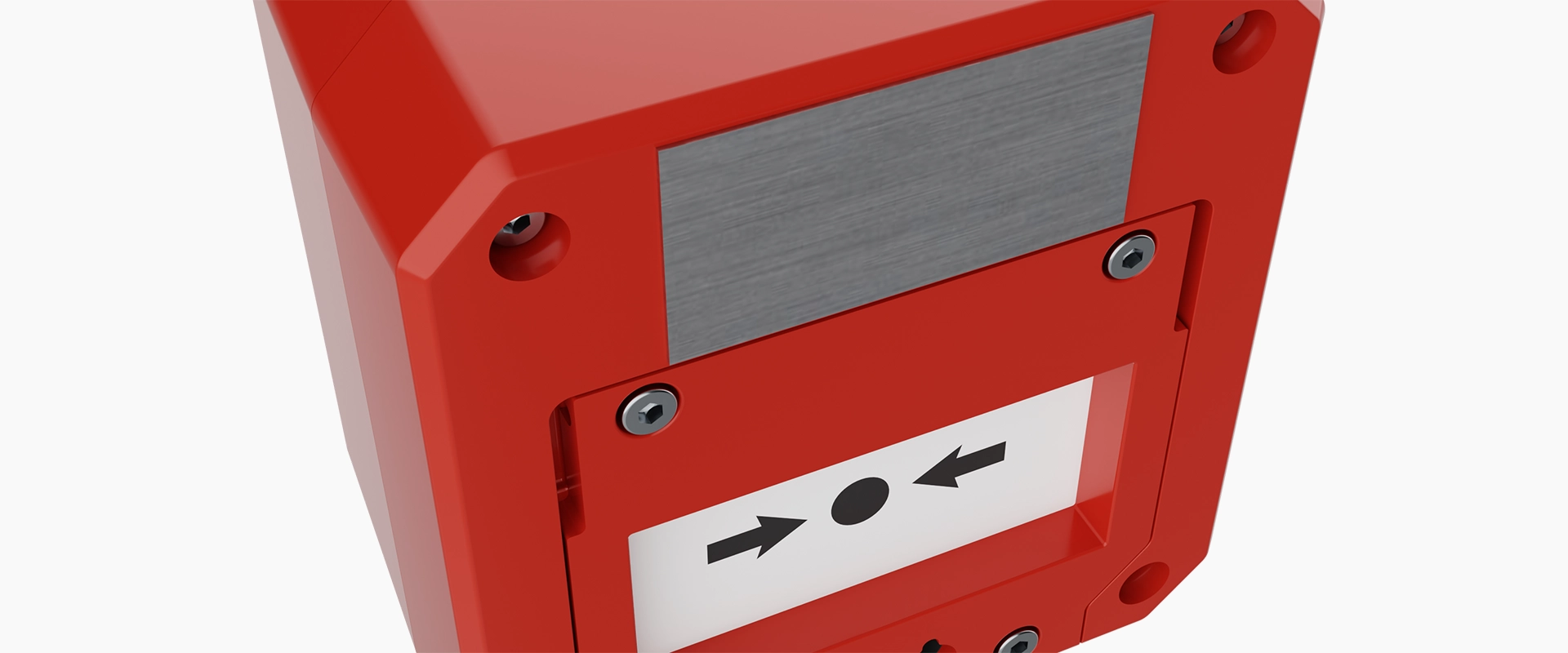

The break glass element incorporates a safety membrane designed to snap cleanly during operation without releasing loose glass fragments. This helps improve safety during activation and maintenance procedures. The WP6-BG is available with optional LED indication and can be configured with single or double pole changeover switches to suit a wide range of system requirements.
Designed for reliability in critical applications, the WP6-BG carries SIL2 compliance in accordance with IEC 61508 and provides IP66/67 ingress protection against dust and water ingress. The device also supports optional end-of-line components and flexible cable entry arrangements, making installation and integration straightforward across different fire and alarm systems.
Turntable
Approvals
Tech Specs
| Switch rating | AC voltage 250 V Max. Current 5.0 A Max.DC voltage 48 V Max. Current 1.0 A Max.DC voltage 24 V Max. Current 3.0 A Max. |
| Ambient | Ta = -40 °C to +75 °C |
| Ingress protection | IP66/67 |
| Enclosure material | GRP – Glass Reinforced Polyester |
| Colour | RAL3000 Red (others available on request) |

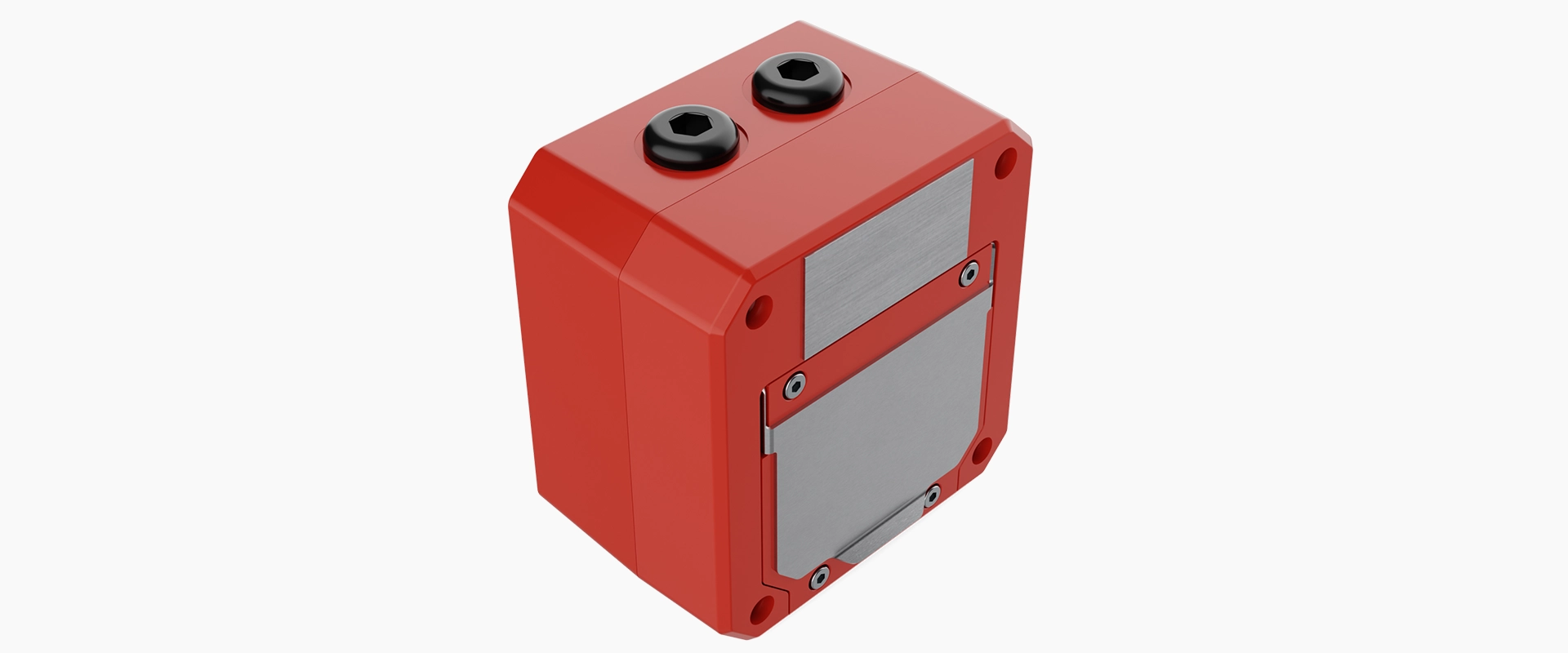

| Cable entries | 2 x M20 clearance top and1 x M20 clearance side.Back box can be rotated to give2 x bottom and 1 x side entriesAdapters available to 1/2″NPT, 3/4″NPT or M25 |
| Stopping plugs | 2 x Nylon plugs as standardBrass, nickel plated brass and stainless steel plugs optional |
| Terminals | 8 × 2.5 mm² DIN rail |
| Weight | 1.2 Kg / 2.64 Ibs |
Downloads
- E2S WP6-BG Conventional Weatherproof Manual Call Point Datasheet
- E2S WP6-BG Conventional Weatherproof Manual Call Point Instruction Manual
- E2S WP6-BG Conventional Weatherproof Manual Call Point Wiring Schematic
- E2S WP6-BG Conventional Weatherproof Manual Call Point EU & UKCA Declaration of Conformity
- E2S WP6-BG Conventional Weatherproof Manual Call Point SIL2 Certificate
