SenTRI IP66 Sounder
SenTRI IP66 Sounder
POA
SenTRI IP66 Sounder, Red
- IP66 weatherproof protection
- High-output audible alert
- Rugged, durable housing
- Quick and easy installation
- Full SenTRI system compatibility
Learn about the SenTRI IP66 Sounder in the
Eurofyre Knowledge Base
Learn about the SenTRI IP66 Sounder in the
Knowledge BaseDescription

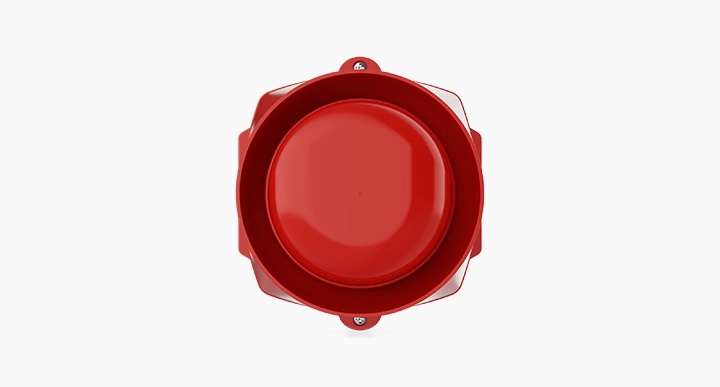

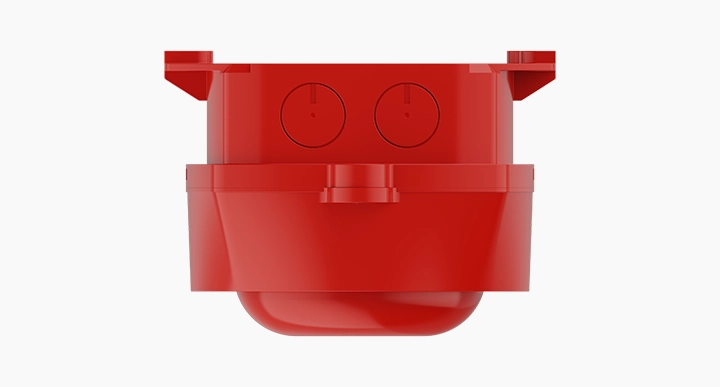

The SenTRI IP66 Sounder, available from Eurofyre, is a fire alarm sounder designed for effective alerting while minimising power usage. Its key features include IP66 weatherproof protection, a high-output audible alert, a robust housing, and simple installation, ensuring compatibility with the entire SenTRI system.
This compact device offers adjustable volume control, soft-start functionality, and synchronised tones for coordinated evacuation. The sounder’s programmable tones help to differentiate it from other alarms, and multiple signal options facilitate phased evacuation strategies.
Technically, the sounder has a maximum loop quantity between 160 and 200, dependant on tone, weighs approximately 0.3kg, and operates between -10oC and +50oC. It has a sound output of 103 dB(A) ± 3dB(A) at 1m and an IR control operating distance of 3m.
The SenTRI IP66 Sounder is certified to EN54 Part 3 (sounders only) and EN54 Part 17. It is LPCB approved to EN54-3, and EN54-17.
Additional information
| Dimensions | 16 × 16 × 16 cm |
|---|---|
| Application | Agricultural, Commercial, Education, Government, Healthcare, Heritage, Hospitality, Industrial, Information Technology, Leisure, Office, Public Buildings, Residential, Retail, Transport |
| Approval Body | CE, LPCB |
| Cable Entries | 4 |
| Colour | Red |
| Country of Origin | Romania |
| Environment | Outdoors |
| Input Voltage | 42VDC |
| IP Rating | IP66 |
| Material | Polycarbonate |
| Mounting | Surface |
| Product | Wired Sounder, Wired VAD |
| Protocol | Managed Protocol |
| Short Circuit Isolator | Yes |
| Sound Output | 103dBA |
| Standards | EN54-17, EN54-3 |
| System | Fire Detection |
| System Category | Addressable |
| System Protocol | SenTRI |
| Wiring | Loop |
| Unit | Piece |
| Kind | Wall |
