Key Features
- Replicates full display and control of the main panel
- Clear graphical user interface
- Full network capability
- Configurable access levels
- Provides distributed system monitoring and control
Overview

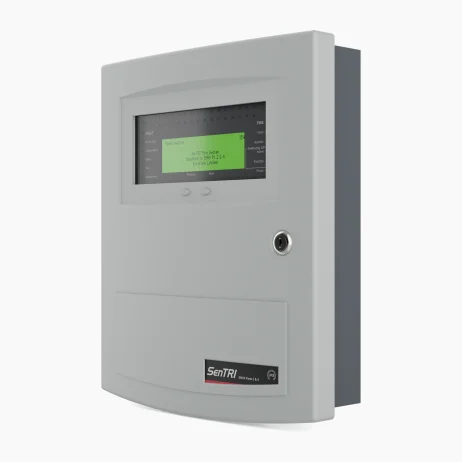

The SenTRI Addressable Repeater Panel is a crucial component for extending the reach and accessibility of the main SenTRI fire alarm control panel within larger or multi-building premises.
It replicates the full display and control functions of the master panel, allowing building occupants and fire services to monitor the system status, acknowledge events and silence alarms from multiple strategic locations. Its main features include a clear graphical display, intuitive user interface, full network capability for seamless communication with the main panel, and the ability to be configured with various access levels, providing essential distributed control and visibility for enhanced safety management.
Turntable
Approvals
Tech Specs
| Mains operating voltage | 230V 50Hz +10% -6% |
| Battery | 12V 7Ah sealed lead acid |
| Operating temperature | 0 to +45°C |
| Storage temperature | -10 to +55°C |
| Relative humidity (non-condensing) | Up to 90% temperature +5 to +45°C |
| Controls (with door closed) Access level 1 | Next and Previous buttons operableduring fire conditions only. |
| Control buttons (with door open) Access level 2 | Sound Alarms, Silence Alarms, ResetFire, Cancel Fault Buzzer, Verify,F1-F4, Menu On/Off and U1-U4. |
| Indicators | Fire, Verify, Power, Fault, Power Fault,System Fault, Delay and CB253/254.Sounder, Sounder, Delay, DisablementTest and 32-Fire Zone LEDs.Display: 8 lines 40 characters per line,back-lit LCD. |
| Loop connection | 3-way connection to a loop circuit |
| Maximum number per loop | Maximum number of repeat and mimicpanels per loop = 4 |
| Panel dimensions (H x W x D) | 403mm x 338 x 101 mm |
| Weight | 9Kg with battery (approximate) |
