Key Features
- Very fast response time of less than 30s
- Compact plug & play sensor
- Powered by the base unit
- Designed for indoor use
- 10+ year life span in normal conditions
Overview
Environmental Monitoring Systems (EMS) are tools used to track and record environmental conditions such as temperature, humidity, air quality and other parameters. They help ensure safe, stable and efficient operations across various settings, from data centres to industrial facilities. EMS can alert personnel to deviations from optimal conditions, preventing damage to equipment, safeguarding sensitive materials and supporting regulatory compliance.

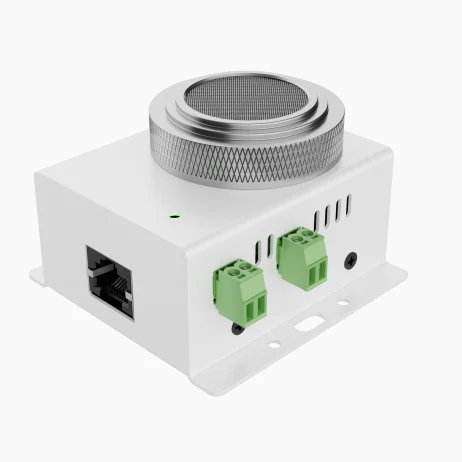

The InfraSensing Standalone H2 & VOC Off-Gas Sensor is a compact, high-performance device designed for real-time monitoring of volatile organic compounds (VOC) and hydrogen (H₂) gas levels in sensitive environments like data centres, server rooms, and industrial facilities.
In lithium-ion battery systems, both VOCs and hydrogen gas can be released during thermal stress, damage, or degradation. These gases signal potential overheating or imminent thermal runaway, a dangerous reaction that can lead to fires or explosions.
Monitoring VOC and hydrogen levels around battery installations is essential for early detection of such hazards. Elevated VOC or hydrogen levels can trigger alerts, enabling preventative measures to protect sensitive equipment and maintain safe operating conditions in environments like data centres and industrial facilities.
InfraSensing Standalone H2 & VOC Off-Gas Sensor uses advanced sensing technology to detect a broad range of VOCs and hydrogen gas levels with high accuracy and sensitivity, issuing alerts when levels exceed set thresholds. It supports SNMP (Simple Network Management Protocol) traps, enabling integration with larger network management systems for automated monitoring and alerts. It can also connect seamlessly to InfraSensing’s SensorGateway enabling centralised environmental monitoring.
Turntable
Approvals
Tech Specs
| VOC measurement output range | 0-500 VOC Index |
| VOC repeatability | <±5 VOC index points or % mass volume (m.v.) |
| H2 detection range | 0-100% LEL |
| H2 accuracy | ±5% LEL |
| Temperature measurement range | -40°C to 125°C (-40°F to 257°F) |
| Temperature accuracy | ±0.48°C (0.86 °F) |
| Relative humidity measurement range | e 0 to 100% RH |
| Relative humidity accuracy | 2% RH |
| Response time (T90) | <30 seconds |
| Powered by and communicates with | Base Unit (BASE-XX) (required) Requires the optional BASE-FW-SSLS firmware add on for the Base Unit |
| Connectivity | RJ45 cable transmitting data & power from Base Unit to Sensor |
| Cable specification | RJ45 CAT 6/7 recommended up to 100m (330ft) subject to cable quality & interference |
| Sensor power usage | 492mW |
| Detection method | Spectrometer |
| Life span | Up to 10 years |
| Operating temperature range | -30°C to +60°C (-22°F to 140°F) |
| Humidity (operating and storage) | < 90% rH (non-condensating) |
| Sensor enclosure | Steel enclosure, industrial grade |
| Mounting option | 0U rack, DIN rail, magnetic, or wall mountable sensor |
| Dimensions (W x D x H) | 71.1 x 68.8 x 28.8mm |
| Weight | 193g (0.43lb) |
