Key Features
- Powered by the base unit
- Long Lifespan of up to 15 years
- No Calibration needed
- Very fast response time of 20 seconds
- Robust design
Overview
Environmental Monitoring Systems (EMS) protect valuable assets by mitigating environmental risks. By continuously monitoring critical parameters, EMS help prevent equipment failures, data loss, and regulatory non-compliance.
equipment failures, data loss, and regulatory non-compliance.

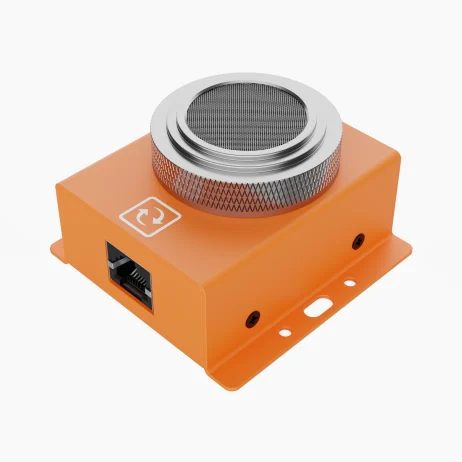

The Hydrogen (H2) Gas Sensor is a high-performance device for continuous hydrogen gas monitoring. It accurately measures concentrations from 0 to 100% LEL with a rapid response time of less than 20 seconds. Key features include a 15-year lifespan, self-calibration, a durable steel enclosure, and seamless integration with BASE-XX Base Units.
This sensor ensures safety and compliance in industries like data centres and renewable energy.
Turntable
Approvals
Tech Specs
| Detection range | 0 to 100% LEL |
| Accuracy | ±5% LEL |
| Response time (T90) | <20 seconds |
| Warm up time | 2 minutes |
| Calibration frequency | No calibration required |
| Life span | Up to 15 years |
| Detection technology | Spectrometer |
| Powered by and communicates with | Base Unit (BASE-XX) (required) Requires the optional BASE-FW-SSLS firmware add on for the Base Unit |
| Connectivity | RJ45 cable transmitting data & power from Base Unit to Sensor |
| Cable specification | Screw Terminal Blocks (RJ45 CAT 6/7 recommended Up to 100m (330ft) subject to cable quality & interference |
| Sensor power usage | 216mW |
| Operating temperature range | -40°C to 75°C (-40°F to 167°F) |
| Humidity (operating and storage) | 0 to 100% rH (non-condensating) |
| Sensor enclosure | Steel enclosure, industrial grade |
| Mounting option | 0U rack, DIN rail, magnetic or wall mountable sensor |
| Dimensions (W x H x D) | 71.1mm x 28.8mm x 68.8mm |
| Weight | 193g (0.43lbs) |
Downloads
InfraSensing Hydrogen Gas Sensor Datasheet
