Key Features

  • Product discontinued
  • Spares available
  • Easy to install
  • Minimum disruption to building fabric and appearance
  • Up to 15 individual, identifiable pipes/areas per detector

Product Discontinued

This product has now been discontinued and has been replaced by VESDA-E VEA Aspirating Smoke Detectors. Please note: spare parts for IFT-15 Aspirating Smoke Detectors are still available. Please contact Eurofyre for further information, servicing and training.

Overview

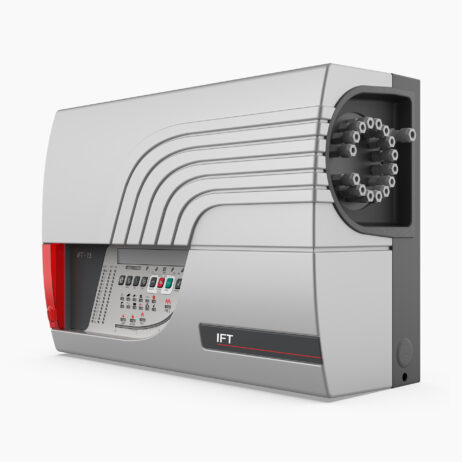

The IFT-15 is a unique 15 pipe high sensitivity air sampling smoke detection system, capable of sampling from up to 15 individual, identifiable areas or cabinets simultaneously. The system uses unobstrusive, easy to install 6mm O.D. microbore flexible tubing to transport smoke to the detector, enabling fast and efficient installation – particularly in difficult to access, aesthetic or architecturally restricted locations. Depending upon application, pipes can be left open-ended or terminated with high quality, attractive, flush chrome-plated or colour coded sampling points.

Unlike conventional air-sampling systems, the IFT-15 uses an enhanced vacuum pump to draw air from the protected areas, making the system ideal for use in applications where high air-flows or differential pressures are present. The wide, dynamic range of the internal laser detector enables the product to be configured for use in many different environments at various levels of sensitivity.

Depending upon application, the product can be supplied with or without internal power supply and batteries, a variety of interface cards/relays for connection to external services, together with the option to control or monitor the system remotely using localised RS485 repeater stations and/or a TCP/IP link.

Approvals

The ICAM IFT-15 is fully approved by VdS for safe use and installation in any European Union country and bears the CE mark to show that it complies with all the applicable Directives including the CPR, EMC and the Low Voltage Directive (LVD).

EN54-20:2006 + AC:2008 – Fire detection and fire alarm systems – Control and indicating equipment.

Tech Specs

Supply VoltageNominal 24Vdc
Supply Current @ 24VdcPower: 31.2 W Quiescent, 32W Scanning
Current: 1.30A, Quiescent, 1.33A Scanning
Capacitive Loading: Nominal 10,000uF
AspiratorLinear vacuum pump
Dimensions (W x H x D)490mm x 355mm x 200mm (19.3in x 14.0in x 7.9in)
Operating ConditionsRecommended Detector Ambient: 0 to 39 °C (32 to 103 °F)
Tested to: -10 to 55 °C (14 to 131 °F)
Sampled Air: -20 to 60 °C (4 to 140 °F)
Humidity: 10 to 95% RH (non-condensing)
Microbore Tube SizeOuter Diameter: 6mm (0.24 in)
Inner Diameter: 4mm (0.16 in)
Microbore Tube Length15 x 50m (15 x 164ft)
Pipe Length: 50m (164ft)
Alarm Sensitivity Range0.001% to 20% obs/m (0.0003% to 6.10% obs/ft)
Alarm SettingsAlert, Action, Fire 1 and Fire 2
Individually programmable for each level
IP RatingIP30
Cable Access7 x 25mm (1”) cable entries
Cable TerminationScrew Terminal blocks 0.2–2.5mm2 (30–12 AWG)
FiltrationField exchangeable dual stage filter
Flow MonitoringDifferential pressure sensor
Relay Outputs4 alarm relays, 1 fault relay
Rated 2A @ 30Vdc NO/NC Contacts
CommunicationRS232, RS485 Modbus
Ethernet TCP/IP
Event LogUp to 20,000 events stored

Downloads

Buy

15 Pipe Aspirating Smoke Detector, Display/Programmer

IFT-15DT
POA
