Key Features
- One to two loops
- 240 devices per loop
- Loop fault diagnostics
- 64 programmable groups
- Approved to EN54-2 & EN54-4
Overview

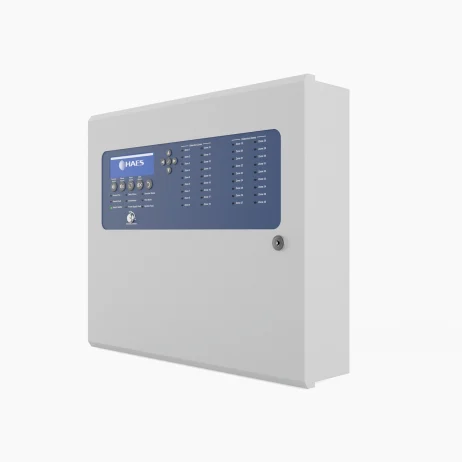

The Haes Esprit Addressable Fire Alarm Panel is a versatile and robust solution designed for intelligent fire detection systems. It supports 1 to 4 loops, making it suitable for small to medium-sized installations, and each loop can accommodate up to 240 devices providing significant flexibility in system design.
The Haes Esprit Addressable 1-4 Loop Fire Alarm Panel includes a large graphical LCD display for easy navigation and setup, two programmable sounder circuits, and advanced false alarm management capabilities. The panel also offers extensive event logging, with up to 255 date and time stamped events. It includes a 3.4A power supply and is housed in a durable metal enclosure with an IP30 rating.
This panel is designed to be user-friendly and cost-effective, making it a popular choice for installers looking for a reliable fire alarm solution that can be easily expanded and configured to meet the needs of different sites.
Turntable
Approvals
Tech Specs
| Enclosure | 1.2mm Mild Steel IP30 Colour ref MW334E Interpon Powder coat |
| Cable entry | Via 20mm knockouts located in the top and rear of the cabinet |
| Dimensions (W x H x D) | Back box: 350 x 300 x 80mm Lid: 357 x 310 x 25mm |
| Mains supply | Universal switch mode PSU, 1.2A |
| Battery capacity | Up to 7Ah 24V |
| Charger current | 700mA |
| Auxiliary supply | 400mA aux supply output (21-28vdc) |
| Loop | Argus Protocol. Up to 2 loops. Each loop – 500mA maximum current |
| Sounder circuits | 2 x 400mA 21-28vdc |
| Switch inputs | CC, PULS |
| Event log | 255 events, time & date stamped |
| Earth fault monitoring | Yes |
| Display | 240 x 64 Graphical LCD backlit |
Downloads
Datasheet
Leaflet
Manuals
Approvals
- Haes Esprit-A Certificate of Constancy of Performance
- Haes Esprit-A Kitemark Certificate
- Haes Esprit-A EU Declaration of Conformity
- Haes Esprit-A Declaration of Performance
Buy
Contact us to receive competitive trade discounts or apply online for a credit account.
