Key Features
- Completely wireless operation
- Mains rated clean contacts
- Battery operated
- Independently tested to ETSI-300-220-1
- CE RoHs and EMC compliant
Overview

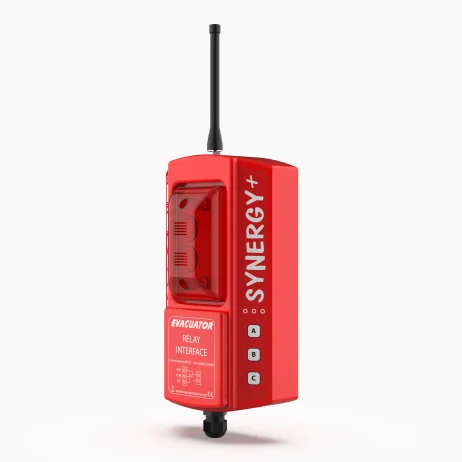

Evacuator Synergy+ Relay Interfaces are manufactured in the UK and are designed to be used as part of a Synergy+ RF addressable, temporary wireless fire alarm system. It features a Double Pole Change Over (DPCO) relay unit that is used to automatically control devices such as air conditioner units, turnstyles and other apparatus that needs automated control during a fire event.
These relay interfaces have a contact rating of 10A 240V AC/30V DC with normally open and normally closed “clean contacts” and can also be used to trigger conventional alarms.
Evacuator Synergy+ Relay Interfaces are completely wire-free and are powered by a 9v battery but can also be operated on mains power if necessary. The Synergy+ Relay has a built in status LED and automatic low battery warning.
Turntable
Approvals
Evacuator Synergy systems operate on a category one radio module meaning they are safe for use in human life inherent systems and are tested to the Radio Equipment Directive (RED). These Call Points are also compliant with the Restriction of Hazardous Substances (RoHS) directive, Electromagnetic Compatibility (EMC) directive and are independently tested to ETSI-300-220-1, the European standard for Short Range Devices (SRD) operating in the frequency range 25 MHz to 1,000 MHz. They bear the CE mark, approving them for sale in the EU.
Tech Specs
Weight | 1.65kg |
Dimensions (W x H x D) | 165mm x 350mm x 95mm |
Power Source | 9Vdc |
IP Rating | IP55 |
Sound Output (dB) | 110db |
