Key Features
- Fully compatible with Wi-Fyre Xenos
- Multi-protocol support
- Installer-friendly auto-learn, loop detection and on-board scope facility
- Dedicated USB Type B port for direct PC connection
- Certified to EN54 Parts 2 and 4 by FM Approvals
Overview

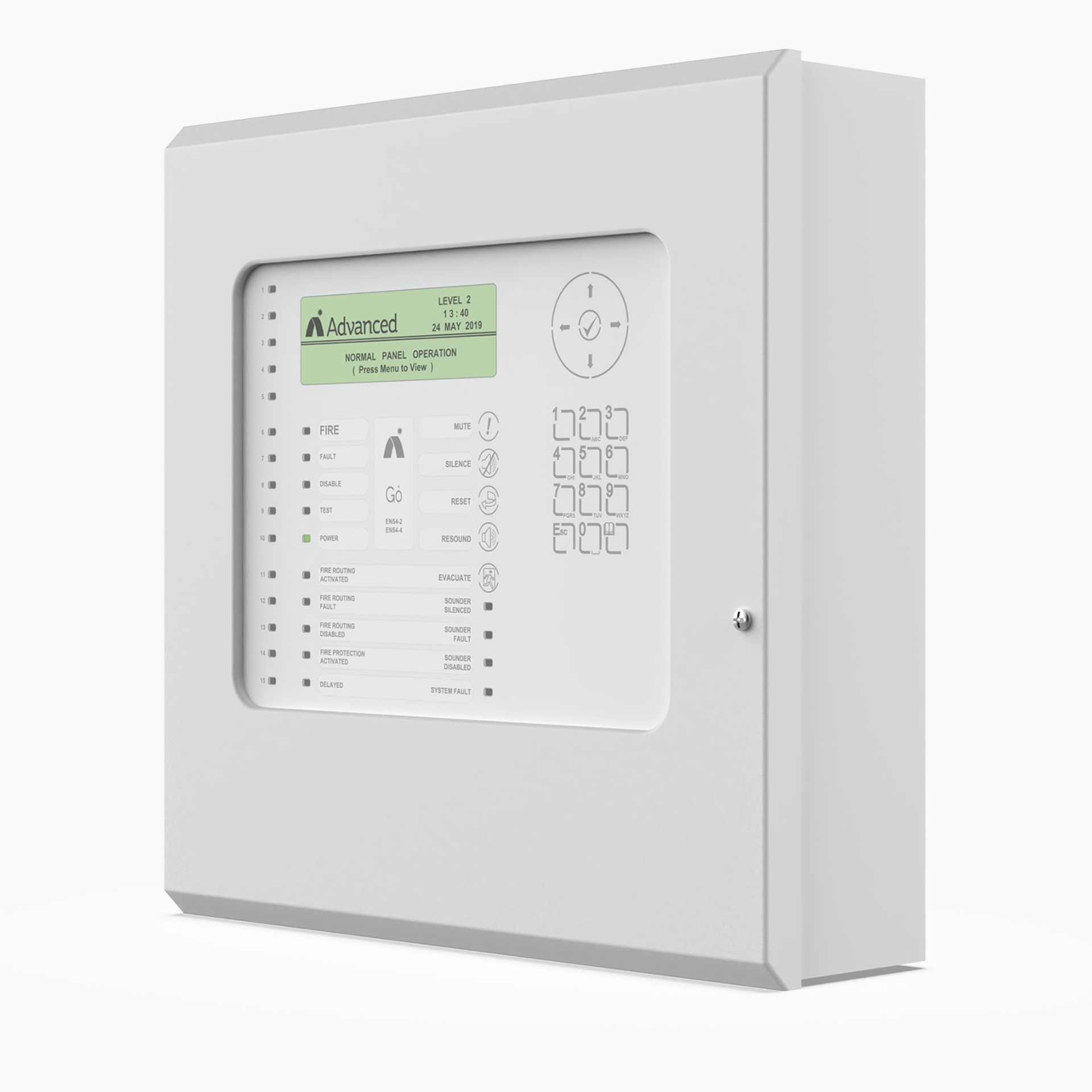

The Advanced Go 1 Loop Addressable Fire Alarm Panel is a new-generation, single-loop fire alarm control panel that delivers premium features in a simple, non-networkable panel. Go is the ideal solution for all small to medium-sized sites where networking is not needed, but performance, quality and ease of use are.
The Advanced Go 1 Loop Addressable Fire Alarm Panel’s easy-fit chassis and unique door design ensure installation is fast and hassle-free and familiar controls and menus mean there is no lengthy learning curve.
The panel’s config tool makes setup quick and easy and a powerful design checker allows you to prove your system will work without visiting the site.
The Advanced Go 1 Loop Addressable Fire Alarm Panel features a wide range of cause-and-effect programming and comprehensive false alarm management and reduction options to minimise unwanted alarms.
Go is designed with speed and efficiency in mind. Built-in peripherals including USB, RTC and ethernet ports, as well as the latest microcontroller technology, ensure high-speed operation of the CPU.
Advanced Go 1 Loop Addressable Fire Alarm Panels are fully compatible with Wi-Fyre Xenos.
Providing Loop Power & Full Addressability
Advanced Go 1 Loop Addressable Fire Alarm Panels can provide power to up to 6 Wi-Fyre Xenos Translators per loop.
Turntable
Approvals
Tech Specs
| Protocols | Apollo (XP95, Discovery), Hochiki (ESP), Argus (VEGA) |
| Number of Loops | 1 |
| Loop Current 1 | 500mA max |
| Number of Fire Zones | 50 max |
| Sounder Outputs 1 | 2 x 1A Programmable (1A total) |
| Relay Outputs (Programmable) | 3 x 1A 30VAC/DC (max) to 10mA 5V (min) |
| Auxiliary Output 1 2 | 24V DC, 100mA (With GOP-001 Fitted) |
| Display | LCD White backlit 240 x 64 Graphical LCD |
| Programmable Inputs | 1 x Key Switch, 1 x monitored |
| USB | USB type B interface for PC connection |
| Network | None |
| Ethernet | 10-Base-T, 100-Base-T |
| Event Log | 5000 Events with Diagnostics + 500 Fire Events |
| Enclosure | Steel IP30 RAL7035 |
| Dimensions (W x H x D) | 345 x 345 x 87mm |
| Weight (excluding batteries) | 4Kg |
| Temperature Range | -5°C to 40°C |
| Humidity (RH) | 95% max |
| Cable Entries | 14 x 20mm knockouts at top |
| AC Supply | 220 – 240V, 50 – 60 Hz, 1.0A max |
| Safety | EN62368-1, Class 1, Pollution Degree 2, Overvoltage Category II |
| Battery Capacity | 24V 4Ah Internal (min), 24V 7Ah Internal (max) |
| Charging Current | 0.35A Temp Compensated |
| Deep Discharge Cut-off | 19.5V |
| Power Supply | On-board 24V DC, 1.5A High Efficiency Off-Line Switched Mode |
| Output Voltage 3 | 18.0V – 28.0V |
| Ripple (Vpkpk) | Up to 1.0V |
| Max Battery Ohms | 1.8Ω ± 0.1Ω |
| Imax(a), Imax(b) 4 | 1.15A, 1.5A |
1 Total output current from panel not to exceed Imax(b) less internal power consumption.
2 Aux supply tracks a maximum of 0.5V below battery terminal voltage when no mains supply is available.
3 Min/Max specifications for the AUX and Sounder outputs. Detector Loop voltage is not dependent on AC or battery voltage.
4 Only applicable if the panel is configured to turn off the charger in alarm. Otherwise Imax(b) = Imax(a).
