Key Features
- Easy-to-use 4.3 inch touchscreen display for intuitive control
- Quick setup
- Supports up to 2 loops and 318 addresses per loop (159 detectors and 159 modules)
- Sleek and compact design
- Clear colour-coded indicators for at-a-glance awareness
Overview

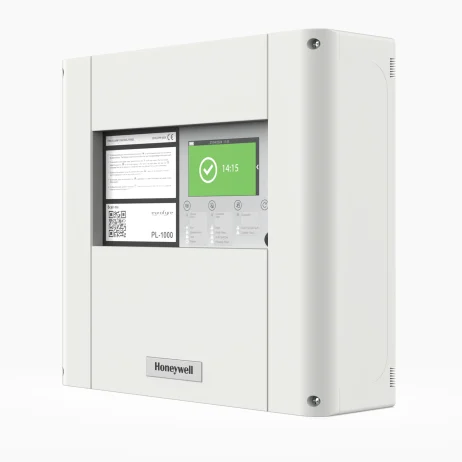

Protecting your small to medium sized building is simple with the Morley-IAS Plus control panel. This easy-to-use panel combines advanced technology with user-friendly features for maximum security and efficiency.
At the heart of the PL-1000 lies Honeywell’s innovative Advanced protocol. This technology ensures fast, reliable detection of fire threats. Detailed information is provided to installers, allowing for streamlined troubleshooting and system maintenance.
Operating the PL-1000 is straightforward. The system features a user-friendly 4.3 inch touchscreen interface that allows for quick configuration and control. The PL-1000 comes with a single loop capacity, expandable to two loops with an optional card. This scalability ensures the system can grow alongside your needs, accommodating up to 159 detectors and modules per loop.
Installation of the Morley-IAS Plus is designed for simplicity. The system seamlessly integrates with both wired and wireless devices, minimising installation and commissioning time. The user-friendly interface further streamlines the process, getting your fire protection system up and running quickly.
The PL-1000 goes beyond simply detecting fire threats. The control panel provides detailed information on each connected sensor. This allows for targeted response and verification before initiating evacuation or sending alerts. This comprehensive approach ensures you take the right action in any situation.
With its compact size, powerful features, and user-friendly design, the PL-1000 control panel is the ideal choice for small to medium sized sites seeking a complete and reliable fire protection solution.
System Sensor Advanced Protocol
The Morley-IAS Plus fire alarm control panel bridges the gap between familiarity and innovation. While seamlessly integrating with current MIAS/System Sensor Protocol devices, it introduces the powerful Advanced Protocol. This advanced technology unlocks several benefits:
- Enhanced Capacity
- The system can handle a significant increase in connected devices. Each loop can now accommodate up to 159 detectors and 159 modules, totaling 318 addresses. This caters to the needs of larger and more complex buildings.
- Streamlined Efficiency
- Advanced Protocol optimises device identification and delivers richer data on each connected element. This translates to faster installation and commissioning, saving valuable time during setup. The improved data flow also contributes to smoother overall system operation.
- Maximised Safety
- By expediting installation and enhancing system performance, Advanced Protocol ultimately contributes to a safer environment. Faster response times and more efficient communication between devices lead to a more reliable fire protection system.
Colour Coordinated System Conditions
The Morley-IAS Plus features an intelligent display that dynamically changes color to clearly communicate system status. This intuitive interface provides a quick visual representation of critical events, allowing for faster response and improved situational awareness.
Turntable
Approvals
The Morley-IAS Plus is endorsed by Applus for safe use and installation throughout the European Union. It carries the CE marking, indicating compliance with relevant directives like the CPR, EMC, and LVD.
Tech Specs
| Loops | Expandable up to 2 Loops using the optional expansion loop card |
| Zones | 16 Zones |
| Devices | 159 Detectors + 159 Input/Output Modules per Loop |
| Loop Short Circuit Protection | 500mA |
| Display | 4.3″ touchscreen graphical colour display, 480 x 272 pixel resolution with backlight |
| Indication | Power, Fire, Disablement, Test, Fault, System Fault, Earth Fault, Power Supply Fault, Aux Power Supply Output Fault, Sounder Fault/Disablement |
| Controls | Reset Panel, Silence Buzzer, Silence Sounders, Evacuate, Additional via Display |
| Inputs | 2 x Digital Inputs |
| Outputs | 1 x Fire Relay 1 x Fault Relay |
| Sounder Circuit | 2 x Conventional Sounder Outputs: 250mA per Circuit |
| Data Ports | 1 x USB-B Input 2 x RS-232 Ports for CLSS Remote Monitoring Software |
| Wiring Format | Loop |
| Distance | 1,500m (Max) |
| Mains Voltage | 100/240Vac, 50/60Hz |
| System Voltage | 24Vdc |
| Battery Capacity | 2 x 12V 12Ah SLA (Max) |
| Dimensions (W x H x D) | 379mm x 356mm x 120mm |
| Cable Entries | Top: 15 x 20mm Knockouts Rear: 8 x Knockouts |
| Mounting Points | 3 |
| Operating Conditions | -5° to +40°C (23°F to 104°F) |
| Humidity | 5 to 95% non-condensing |
| Materials | ABS Flame Retardant UL94 Class V-0 |
| Colour | Enclosure: RAL 9002 |
| IP Rating | IP30 |
| Design Environment | Indoor Use Only |
Downloads
Datasheet
Manuals
- Morley-IAS Plus Addressable Fire Alarm Panel Installation & User Manual
- Morley-IAS Plus Addressable Fire Alarm Panel Quick Start Guide
Approvals
- Morley-IAS Plus Addressable Fire Alarm Panel Certificate of Constancy of Performance
- Morley-IAS Plus Addressable Fire Alarm Panel Declaration of Conformity
- Morley-IAS Plus Addressable Fire Alarm Panel Declaration of Performance
- Morley-IAS Plus Addressable Fire Alarm Panel EN54-13 Compliance Certificate
