Key Features
- Mains-rated input/output control
- Compatible with SenTRI systems
- Supplied with durable mounting box
- Reliable monitoring and switching
- Easy installation and integration
Overview

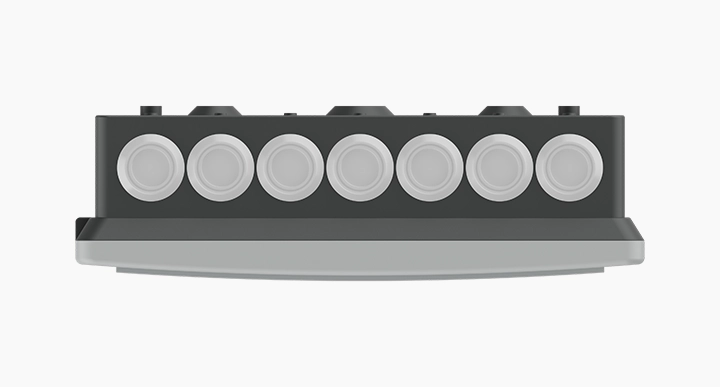

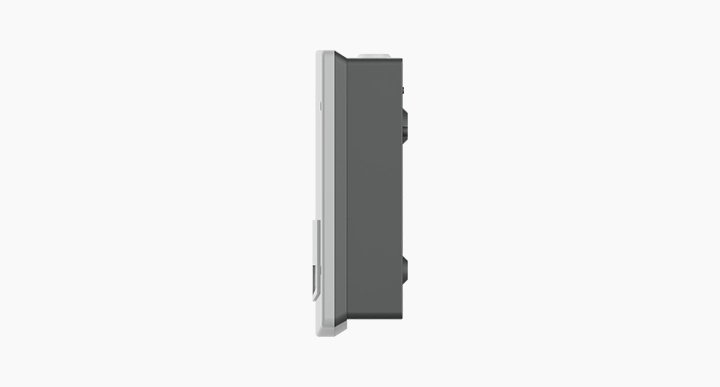

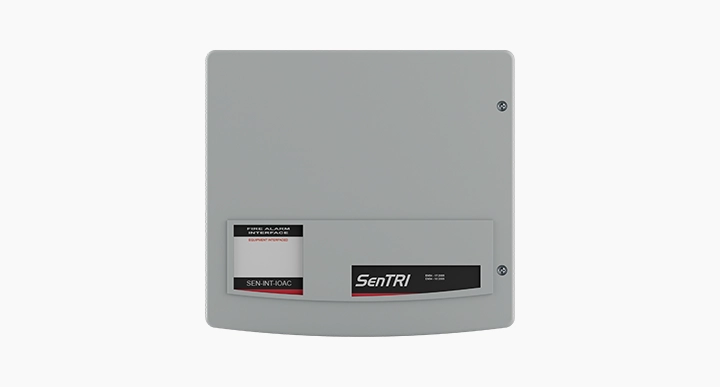

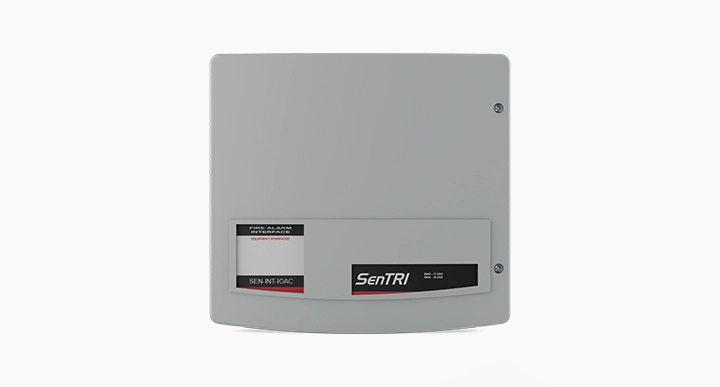

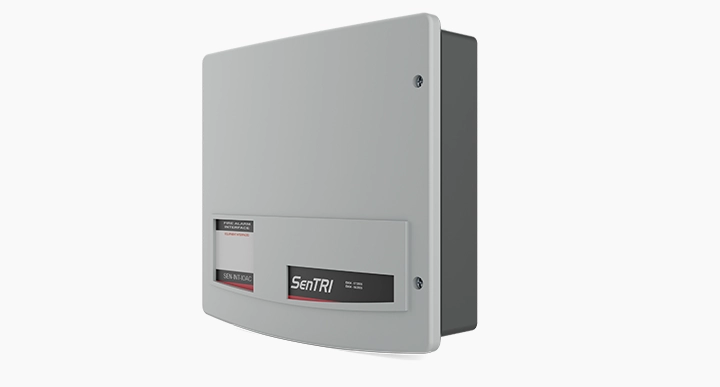

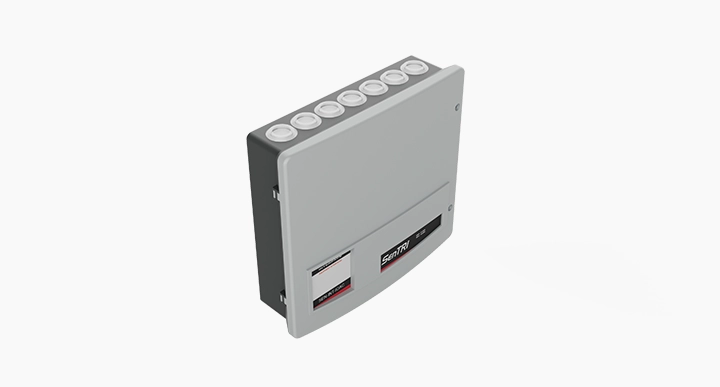

The SenTRI Single Mains Rated Input Output Module provides a reliable interface between SenTRI fire systems and mains-powered equipment. Supplied complete with a durable mounting box, it allows safe monitoring and control of mains-rated circuits while ensuring secure, tidy installation. Ideal for integrating building services or specialist equipment into a SenTRI system.
Turntable
Approvals
Tech Specs
| Overall dimensions (H x W x D) | 227 x 245 x 77mm |
| Back box (Aperture) (H x W x D) | 233 x 210 x 48mm |
| Assembled weight (approximate) | 1.1Kg |
| Enclosure | ABS V-O rated |
| Colour | Back box – Dark GreyLid – Light Grey |
| Storage temperature | -20 to 70°C |
| Ambient operating temperature | -10 to 45°C |
| Relative Humidity(Non condensing) | Up to 95% Temperature 5°C to 45°C |
| Ingress Protection (estimated) | IP31 |
| Output(s) Relay contact rating | Resistive load: Single pole change over contacts rated 13A 230V AC.Inductive load: 1hp @ 240V AC, 1/2hp 120V AC |
| Modes of operation | InputOutputInput and OutputInput with confirmation OutputOutput with confirmation Input |
| Maximum number per loop | 100 units per loop (of which only 8 can be individually programmed) |
| Standards | Designed to meet EN54:part 17 and EN54:part 18 |
