Key Features
- Addressable loop integration
- Supports NO and NC inputs
- Built-in loop isolator
- Compact design
- Wide temperature range (-10°C to +60°C)
Overview

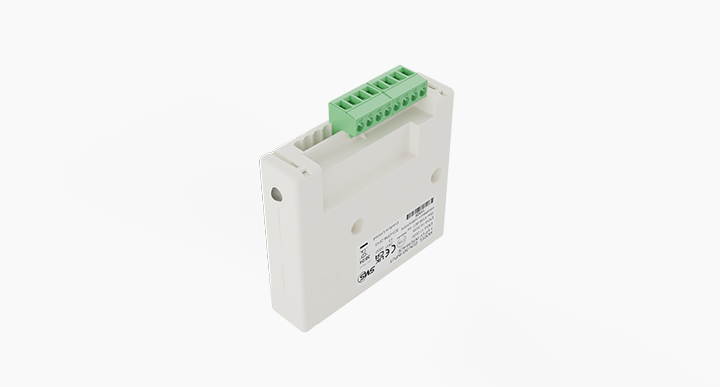

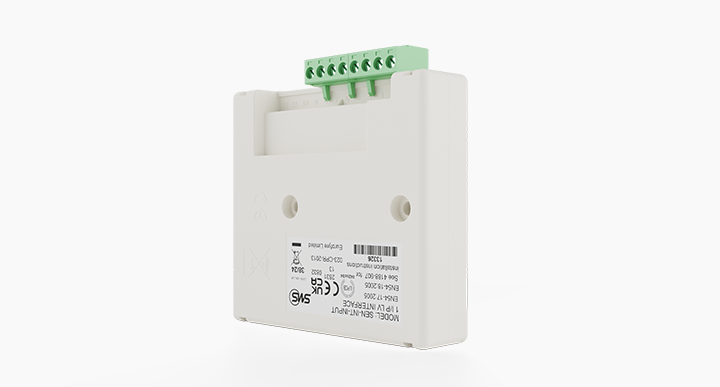

The SenTRI Single Input Module is an analogue addressable interface designed to integrate external devices—such as sprinkler flow switches, pressure monitors or conventional devices without built-in addressable electronics—into the SMS SenTRI fire alarm system.
Each module has a unique address on the system loop, allowing precise identification and monitoring of connected device status. It supports various input types, including normally open and normally closed contacts, making it adaptable to different external signals.
Equipped with a built-in loop isolator, the module maintains system integrity by isolating faults and ensuring continuous communication. This module expands the SenTRI system’s capabilities by enabling seamless integration of non-addressable devices into the addressable fire detection network.
Turntable
Approvals
Tech Specs
| Panel Compatibility | Compatible with Loop = V4.35 and Main Control Card = V4.37 |
| Load Factor | Load Factor 1-4 Switch Inputs = 1 (maximum 200 per loop) 1-4 Relay Outputs = 2 (maximum 200 per loop only 8 individually sectored) Zone Input = 26 (maximum 30 per loop) Every LED Output = + 5 (maximum 100 LED outputs per loop) |
| Relative Humidity | Up to 95% – Temperature +5oC to +45oC (Non condensing) |
| Operating Temperature | -10oC to +60oC |
| Weight | 92g |
| Ingress Protection | IP31 for plastic box SEN-490IP40 estimated for metal box SEN-492 |
| Standards | EN54-17 and EN54-18 |
| Approvals | LPCB Approved |
